HYDRAULIC TIPPER

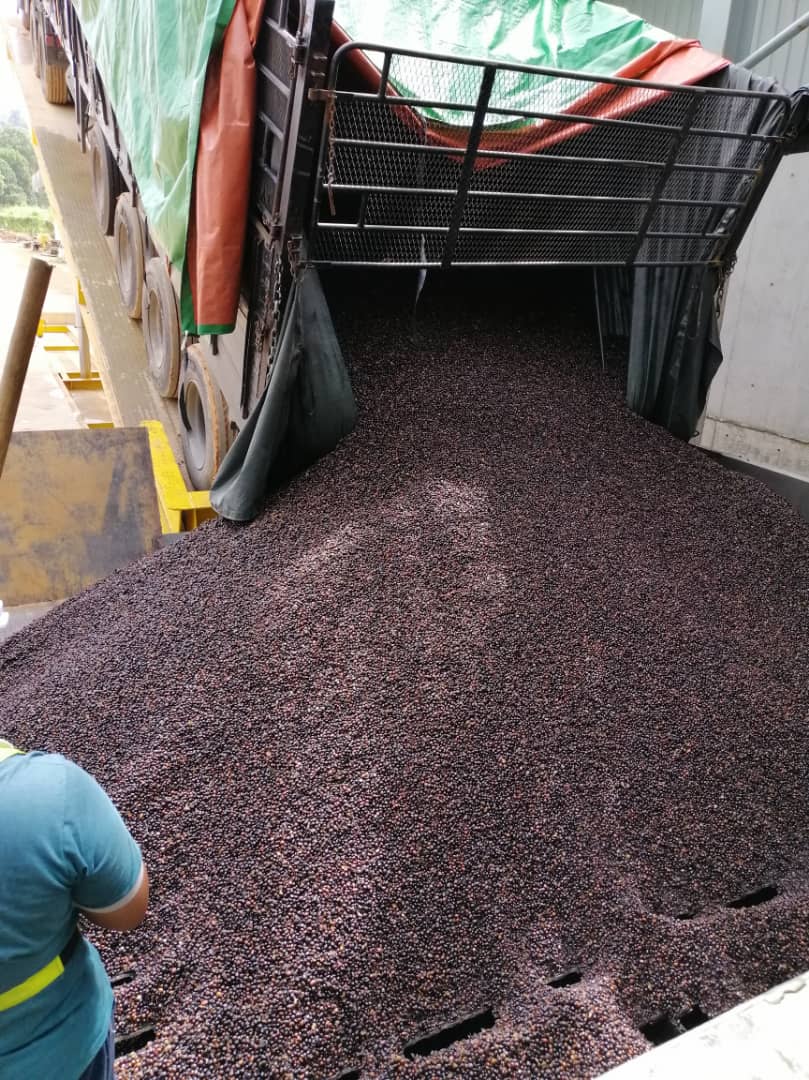

Hydraulic tipper simplify the process of unloading and dumping heavy loads, providing efficient and effortless material handling. A cost-effective solution, our tippers are designed to maximise productivity and minimise manual labour.

Safety Working Load

500 kg - 50000 kg

Travelling Height

Available based on customer's need

Platform Size (mm)

(L) x (W) - Customized sizes are available based on customer's need

Safety Working Load	30 tons - 80 tons

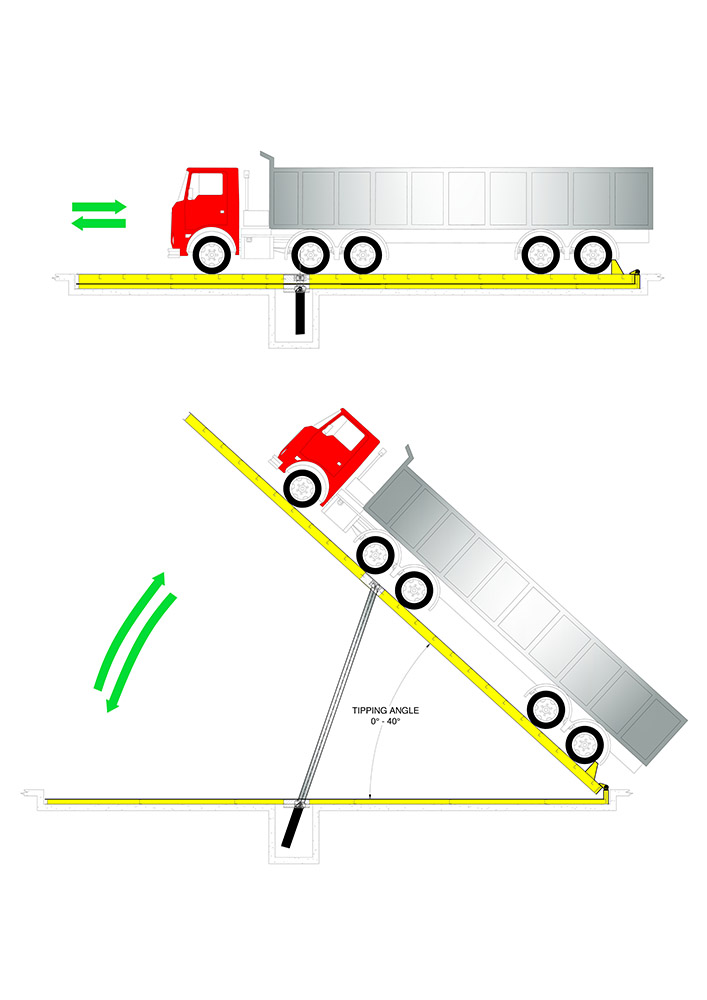

Tipping Angle	0˚ - 40˚
Platform Size (mm)	- (L) - 10M - 18M - (W) - Customized sizes are available based on customer's need

GENERAL

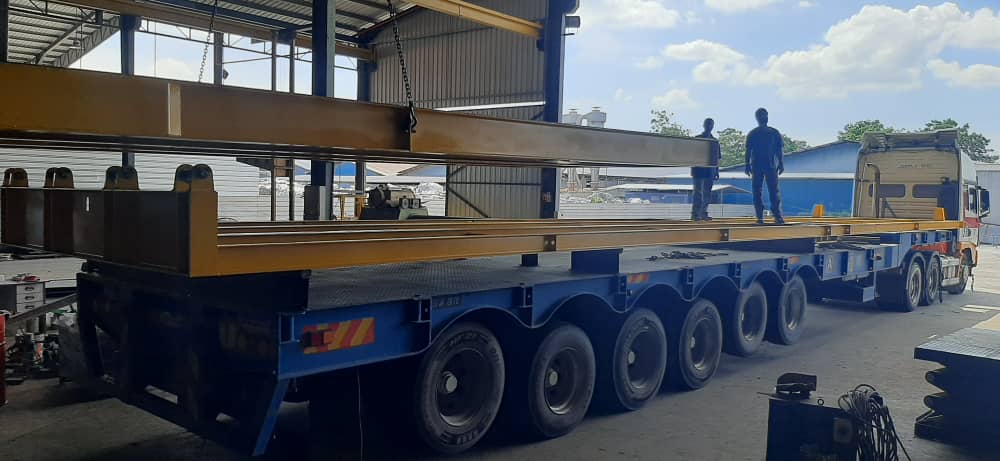

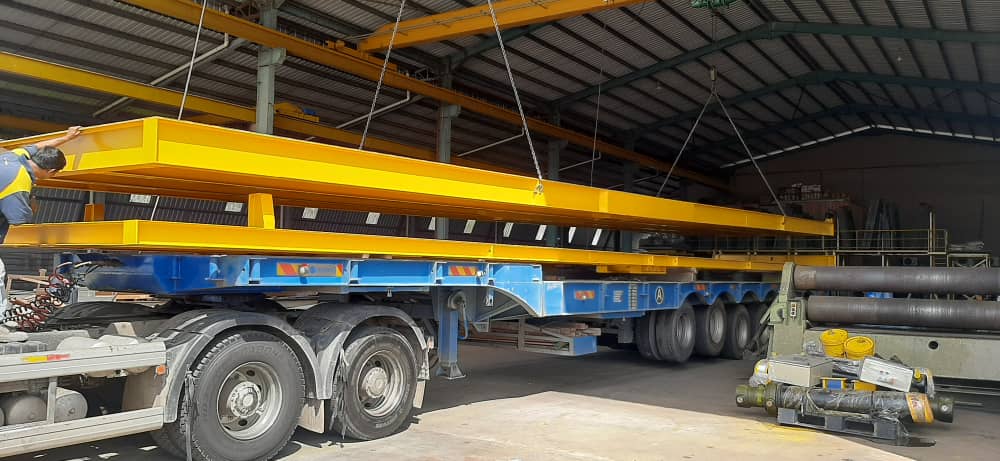

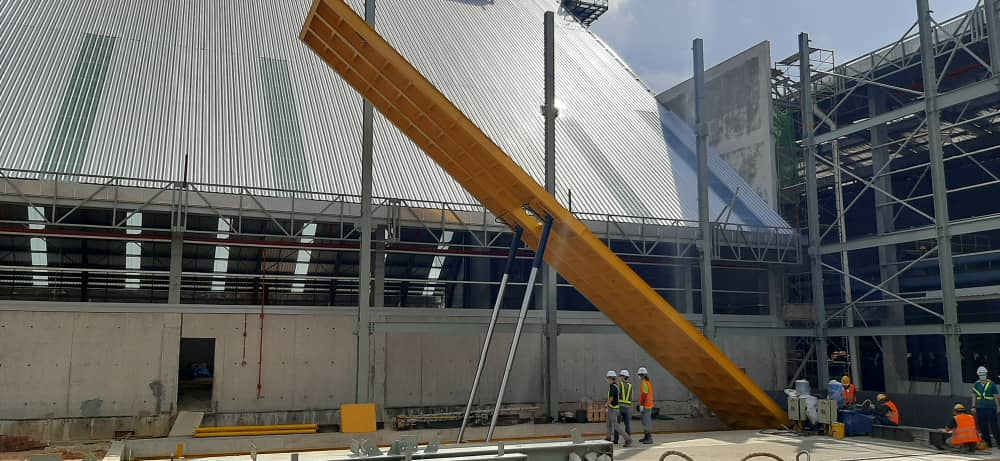

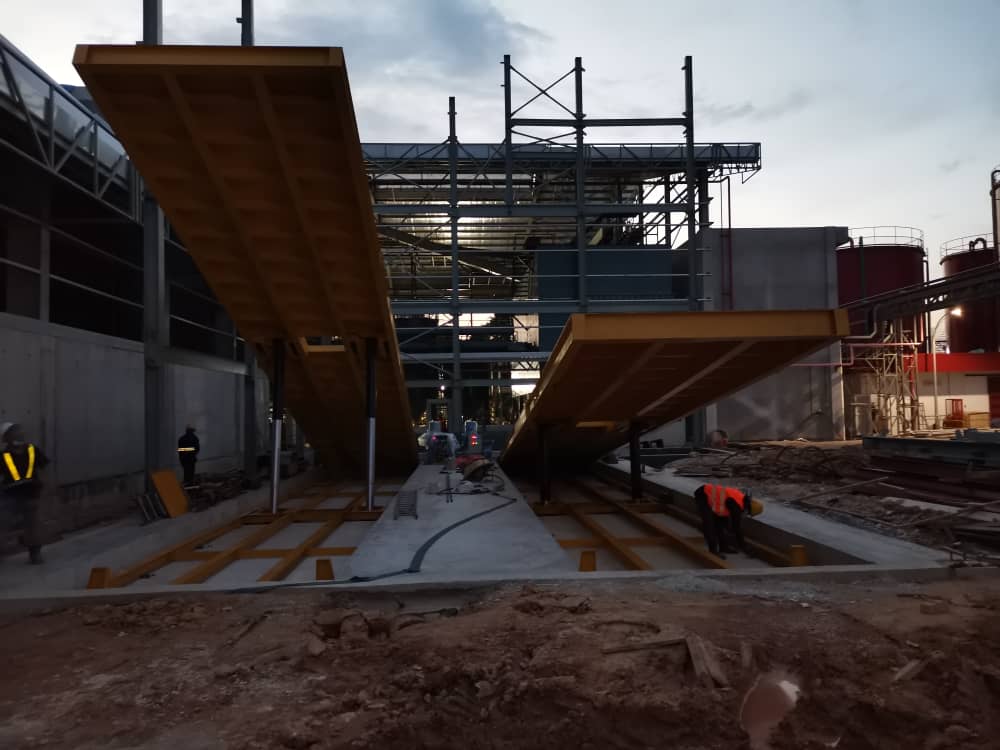

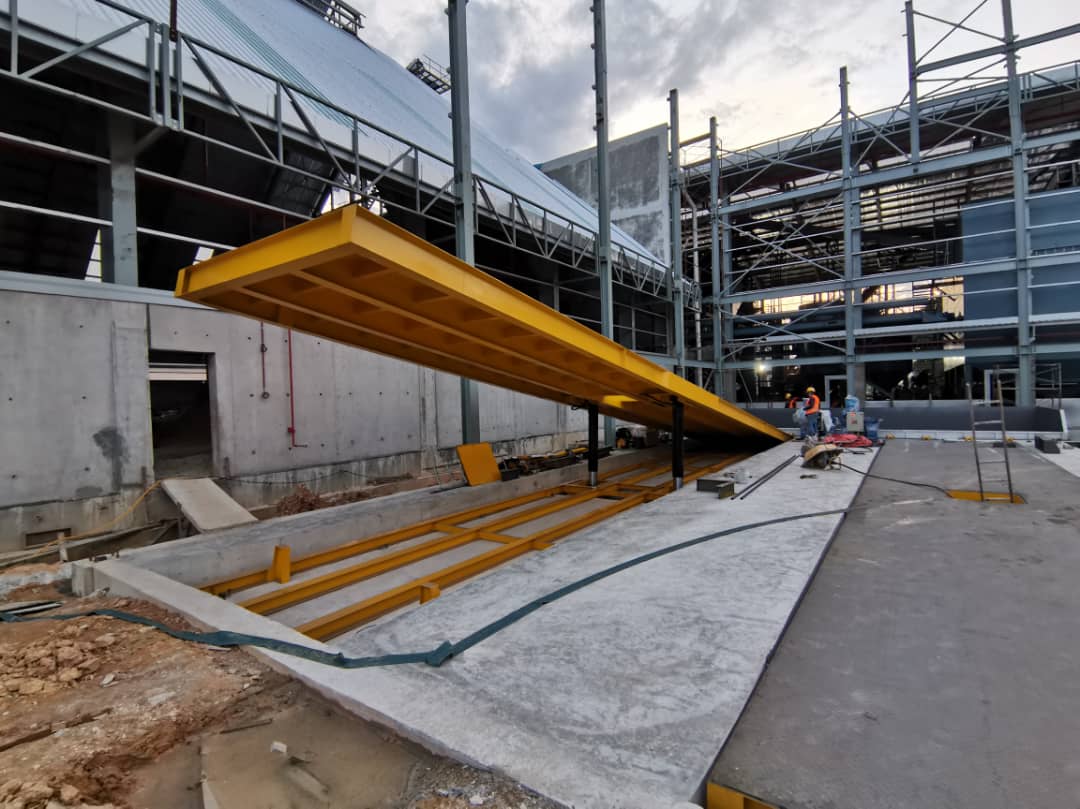

The platform is of an extremely rigid construction manufactured mainly from beam and heavy duty-steel plates.

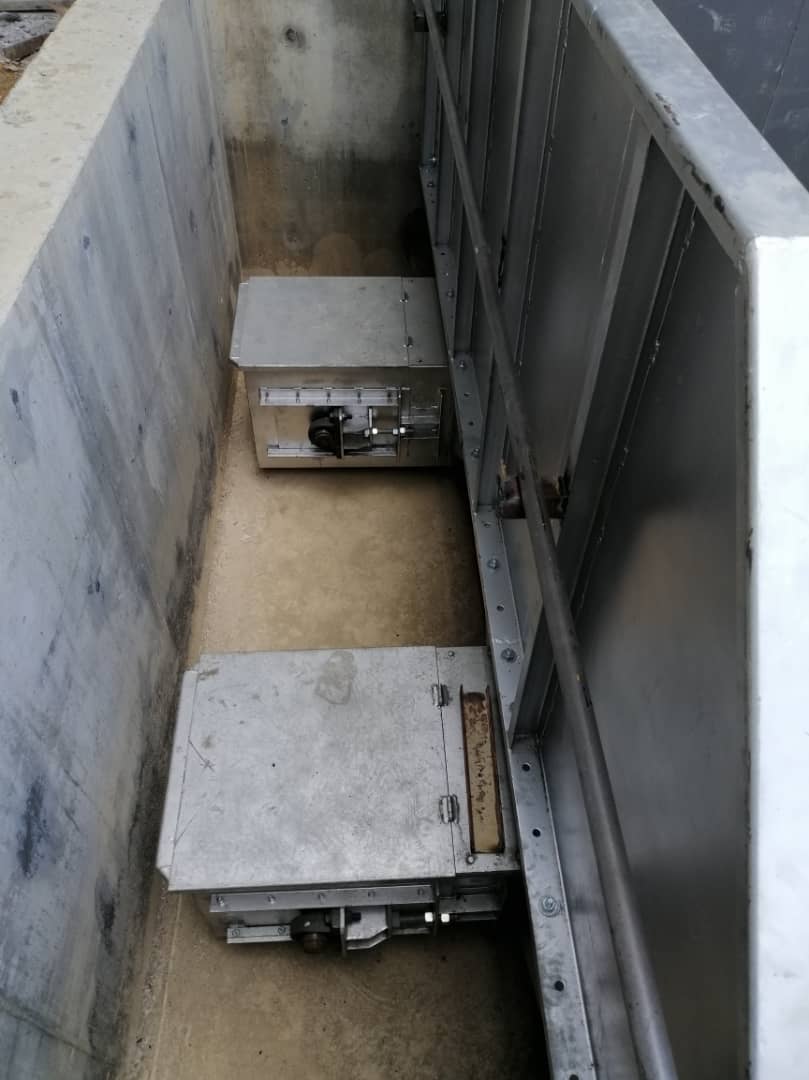

An inspection door is located in the deck of the platform in order to allow access to the hydraulic system and cylinders.

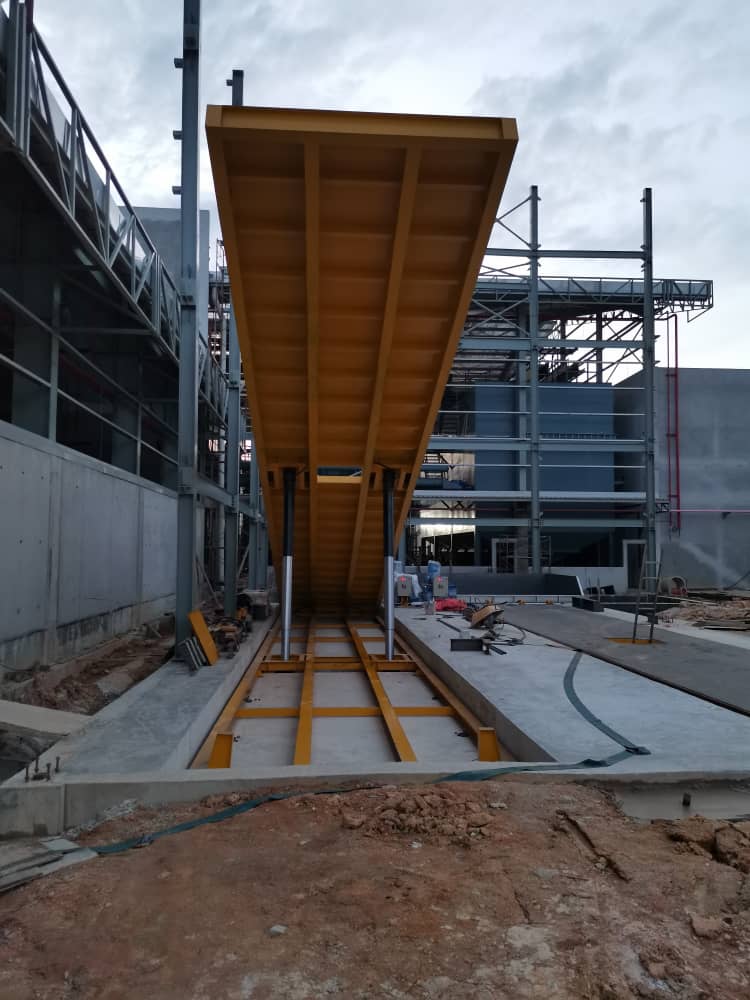

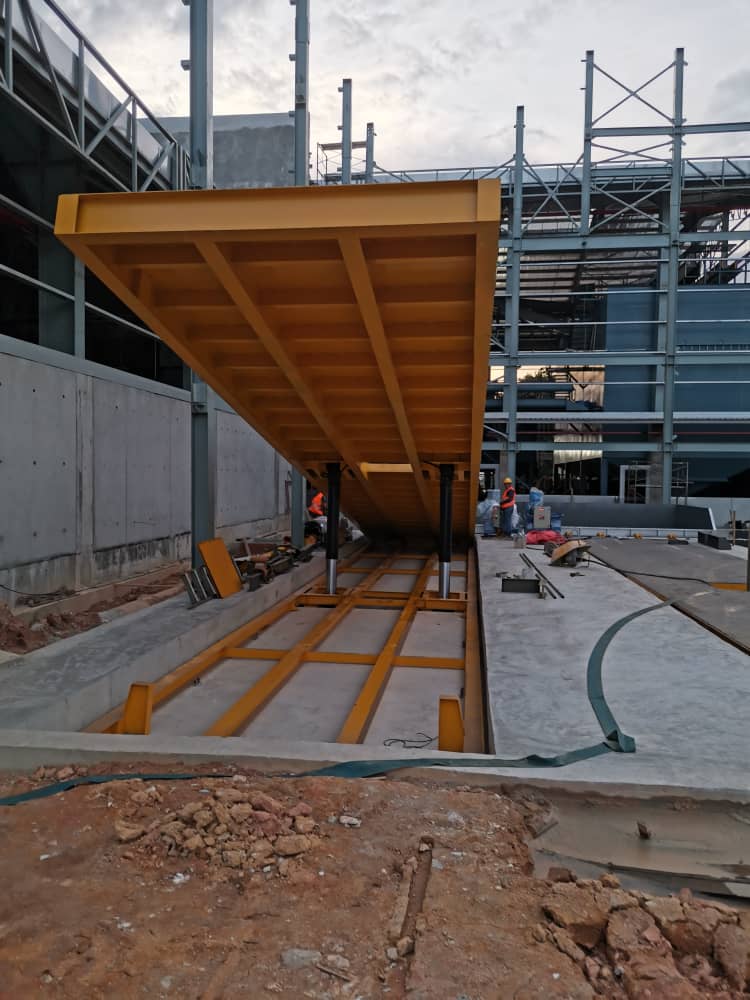

The hydraulic cylinders are securely fastened in a heavy frame.

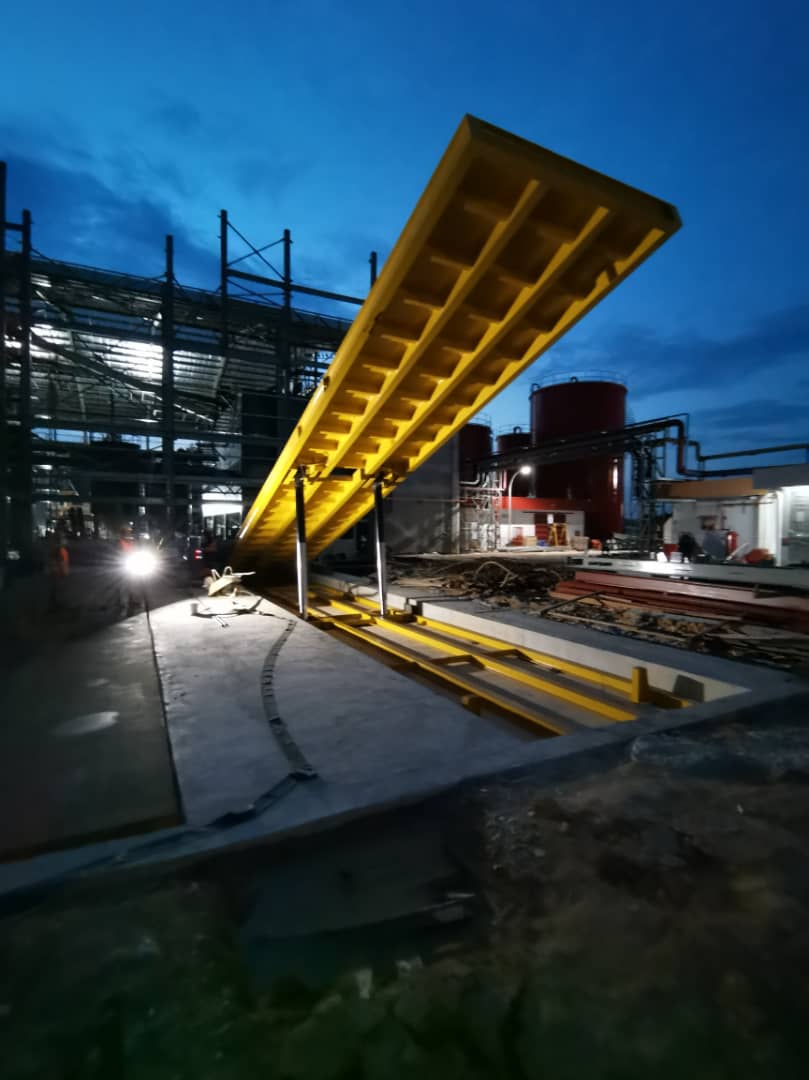

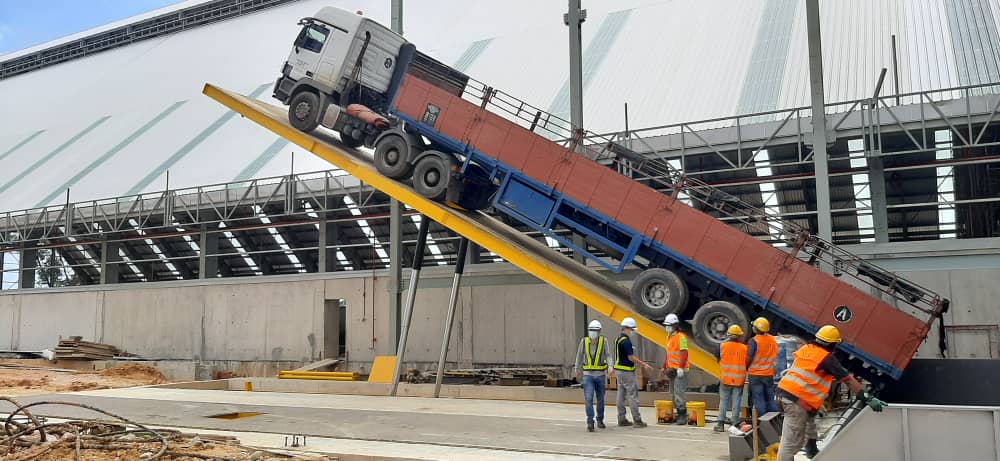

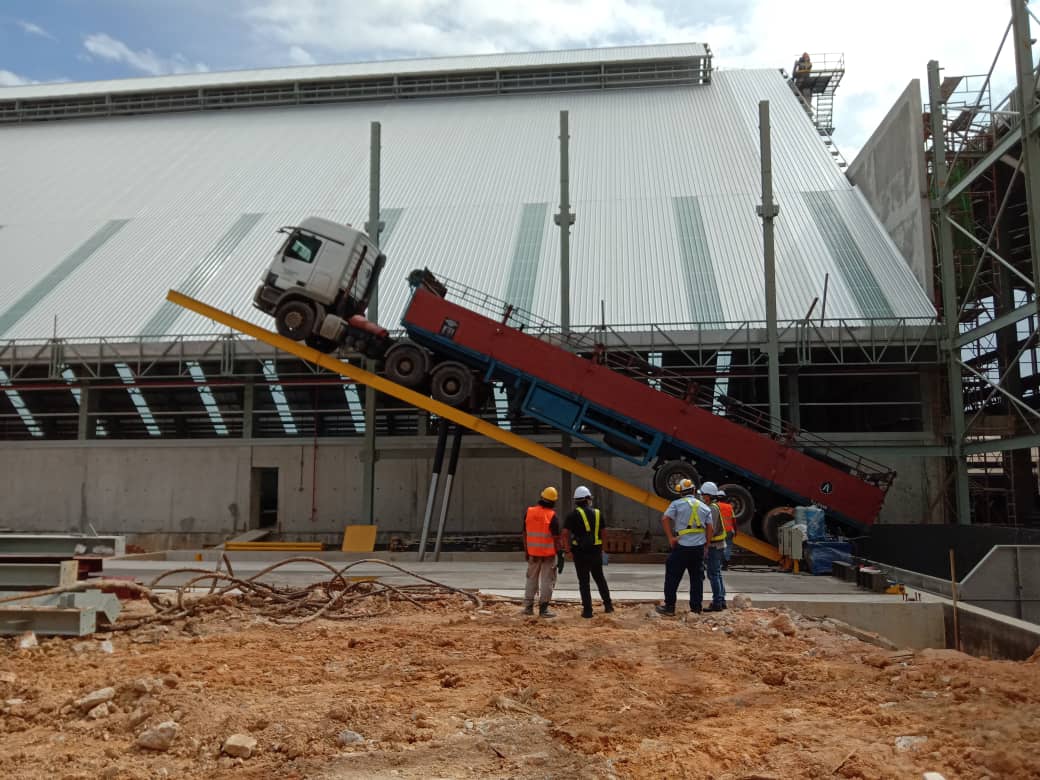

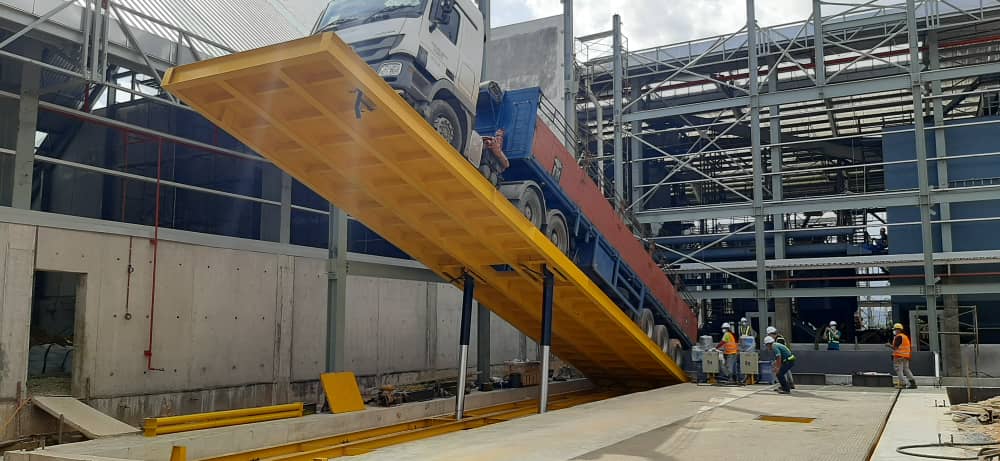

The standard tipping angle is usually 35 degrees, but can be made up to 40 degrees depending on material to be dumped.
Raising time is about 120 seconds and lowering time is approximately 90 seconds.
Capacities ranges from 30 to 80 Tons.

Our quality lift is a pinnacle of precision engineering, prioritizing safety, efficiency, and aesthetics. Crafted with advanced technology, it ensures seamless vertical transportation.
