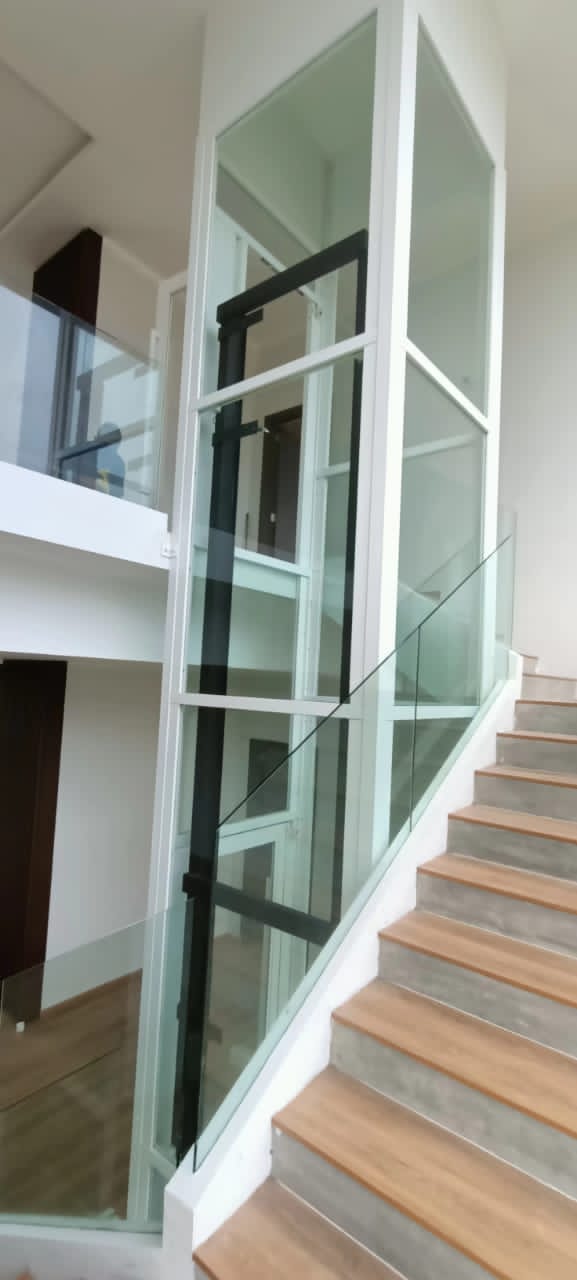

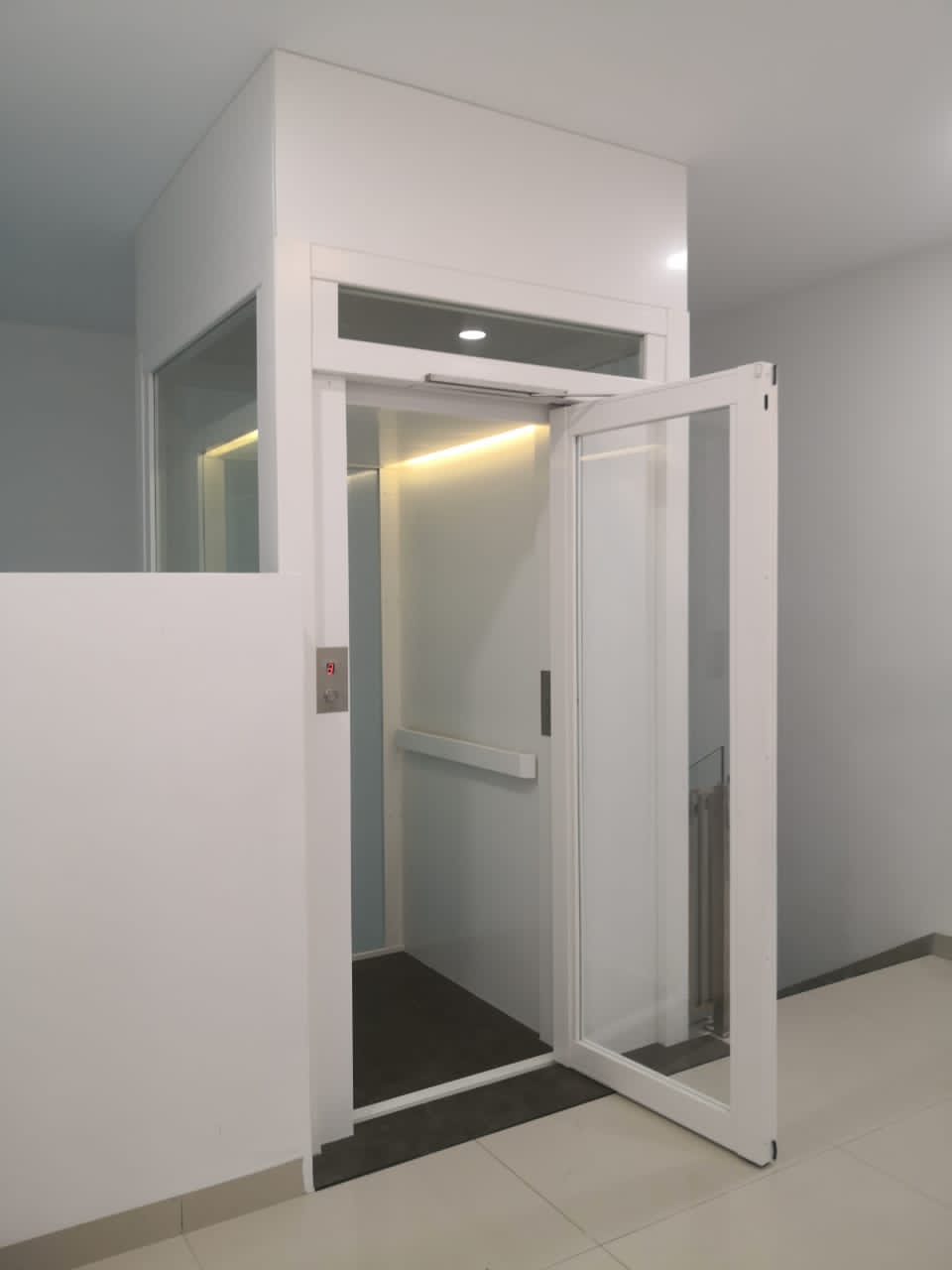

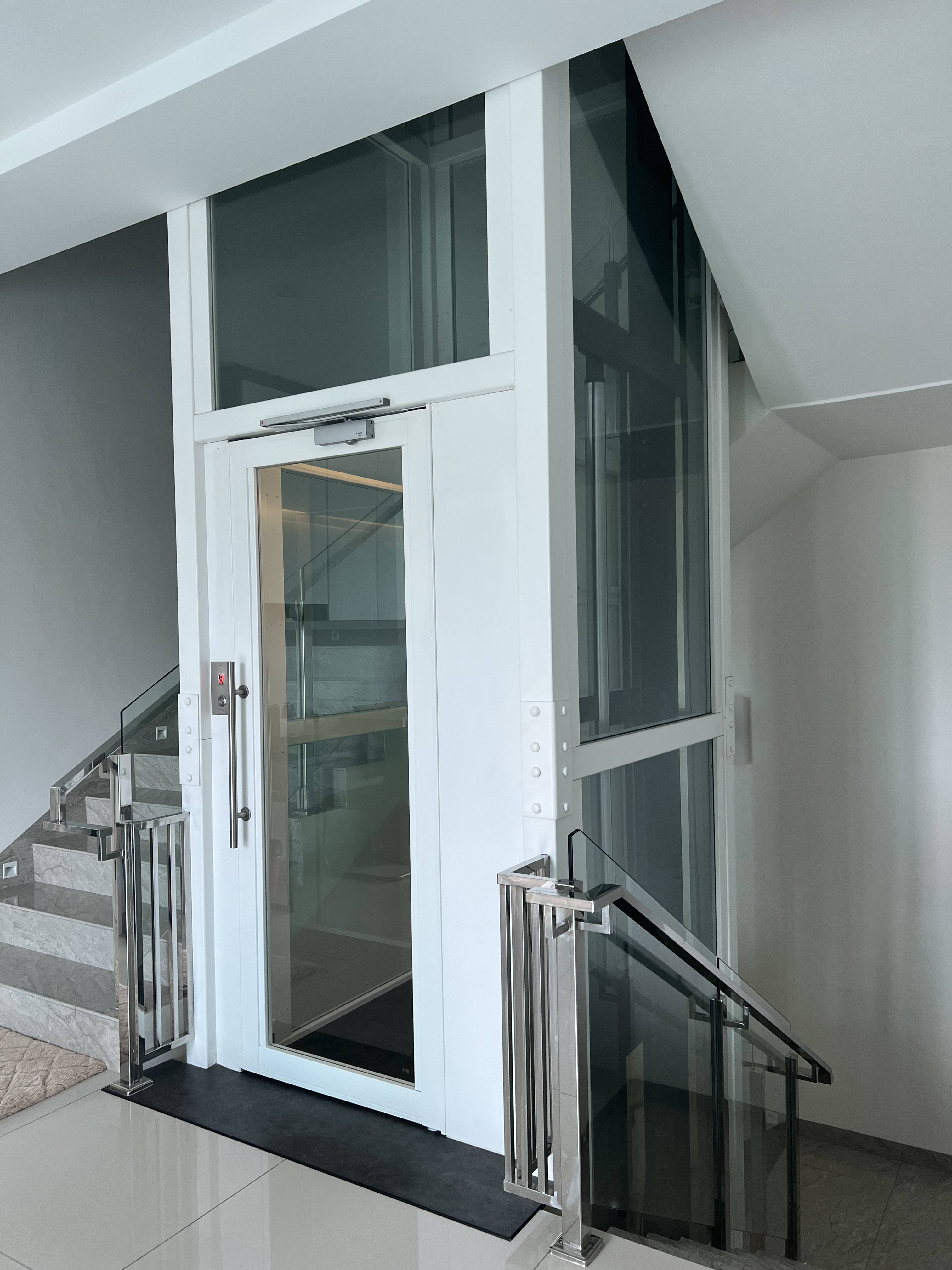

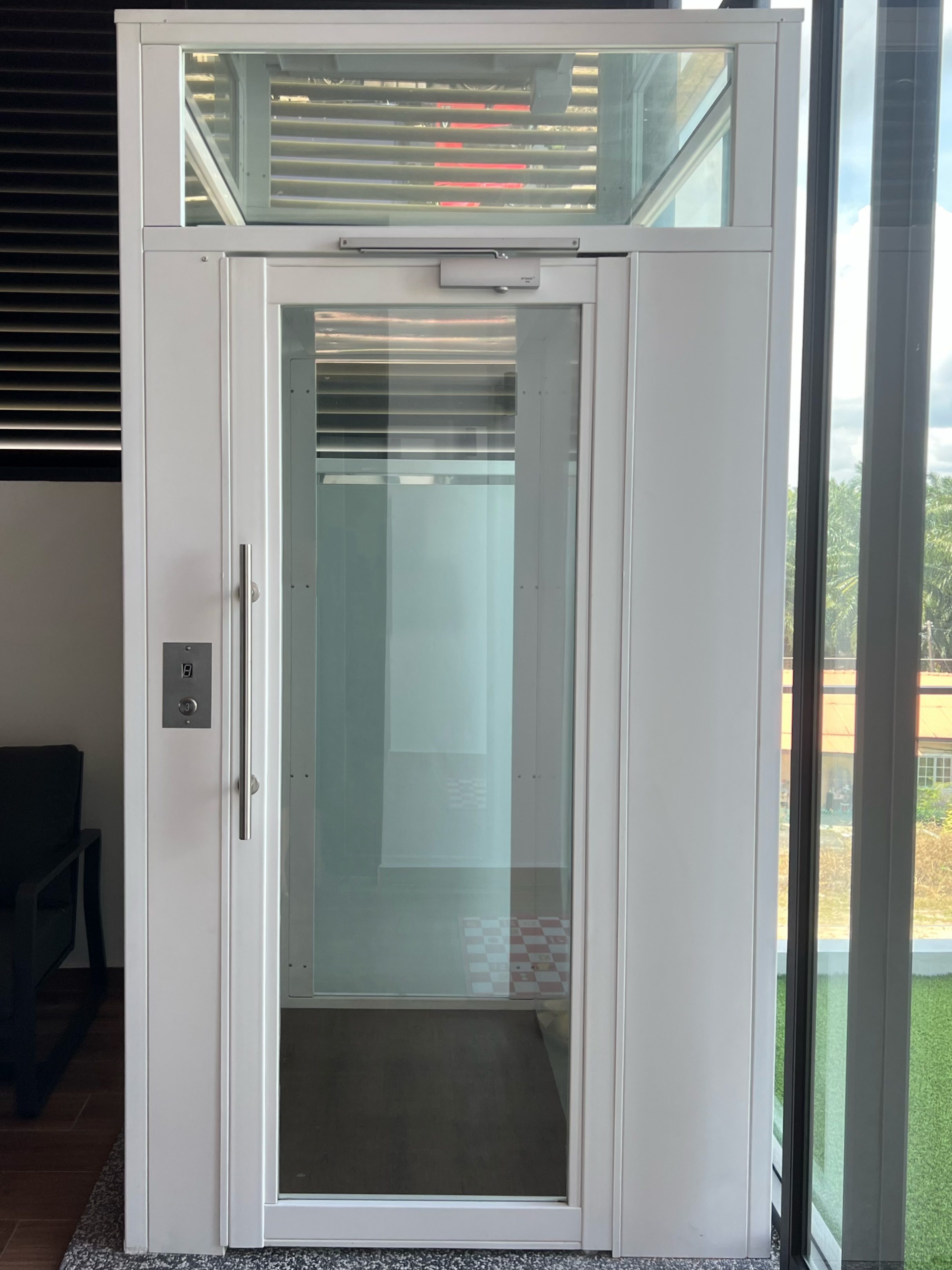

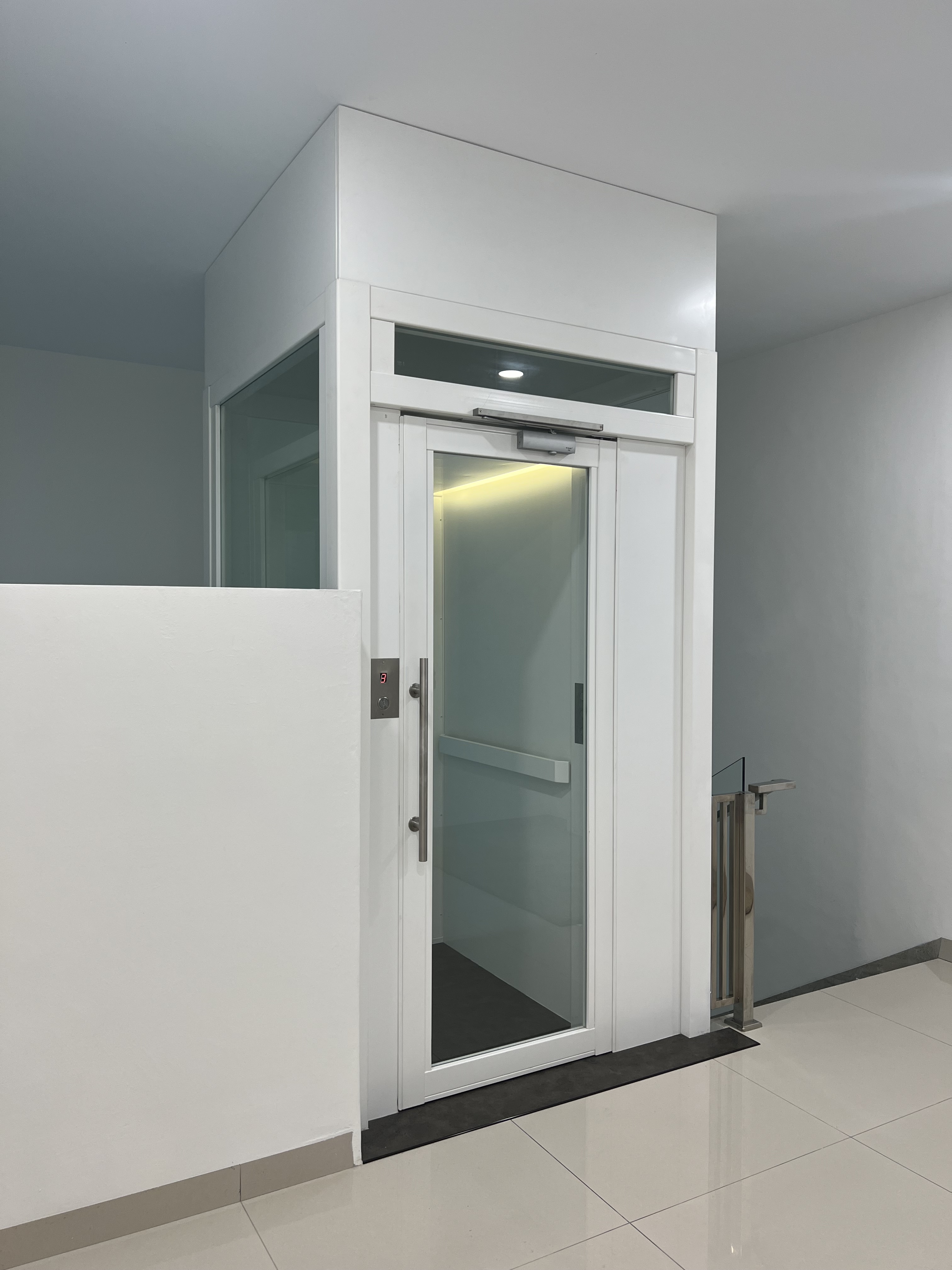

Gallery
Types Of Landing Door
Car Features

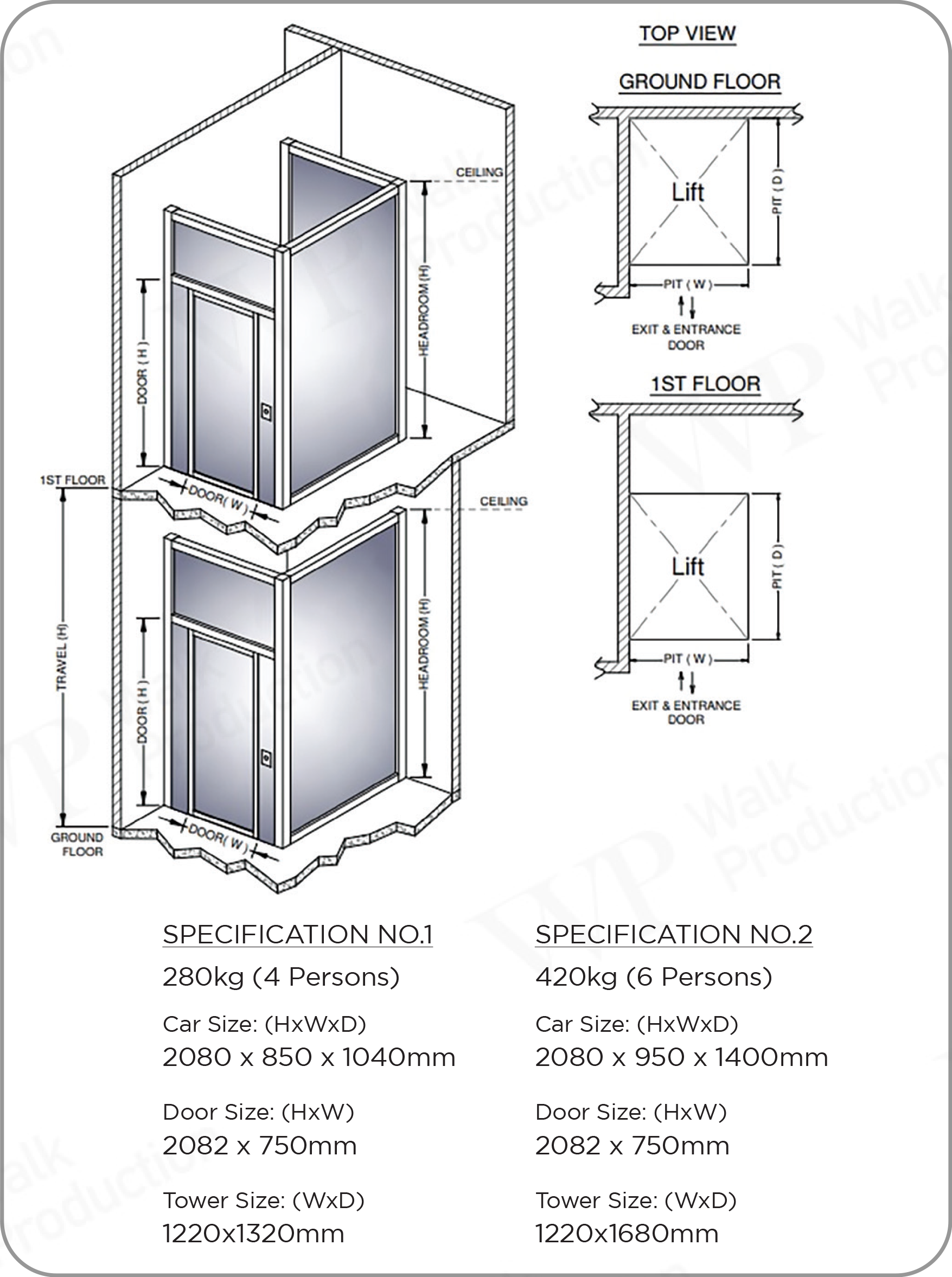

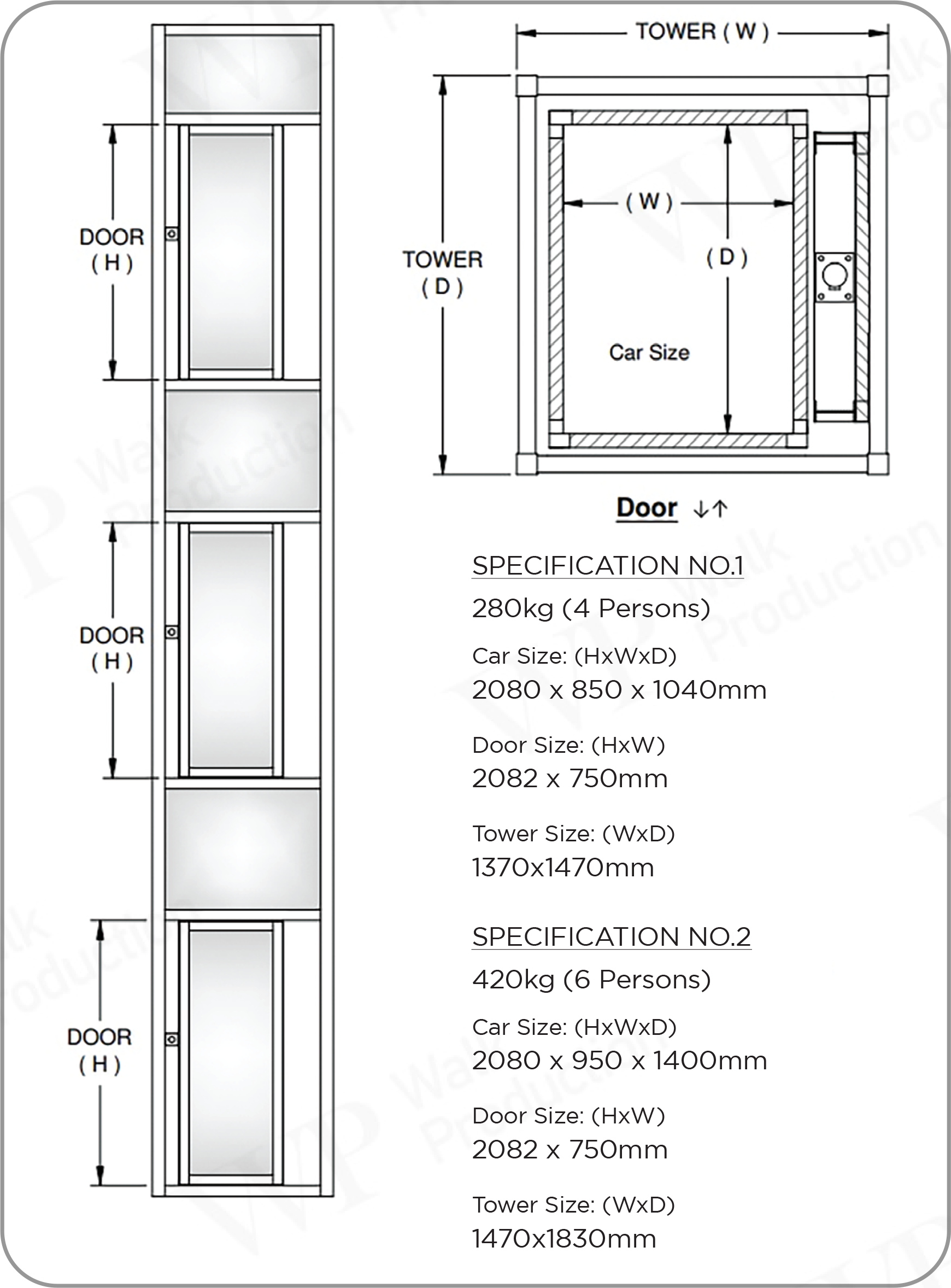

Layout Plan
Features & Specifications
Features & Specifications

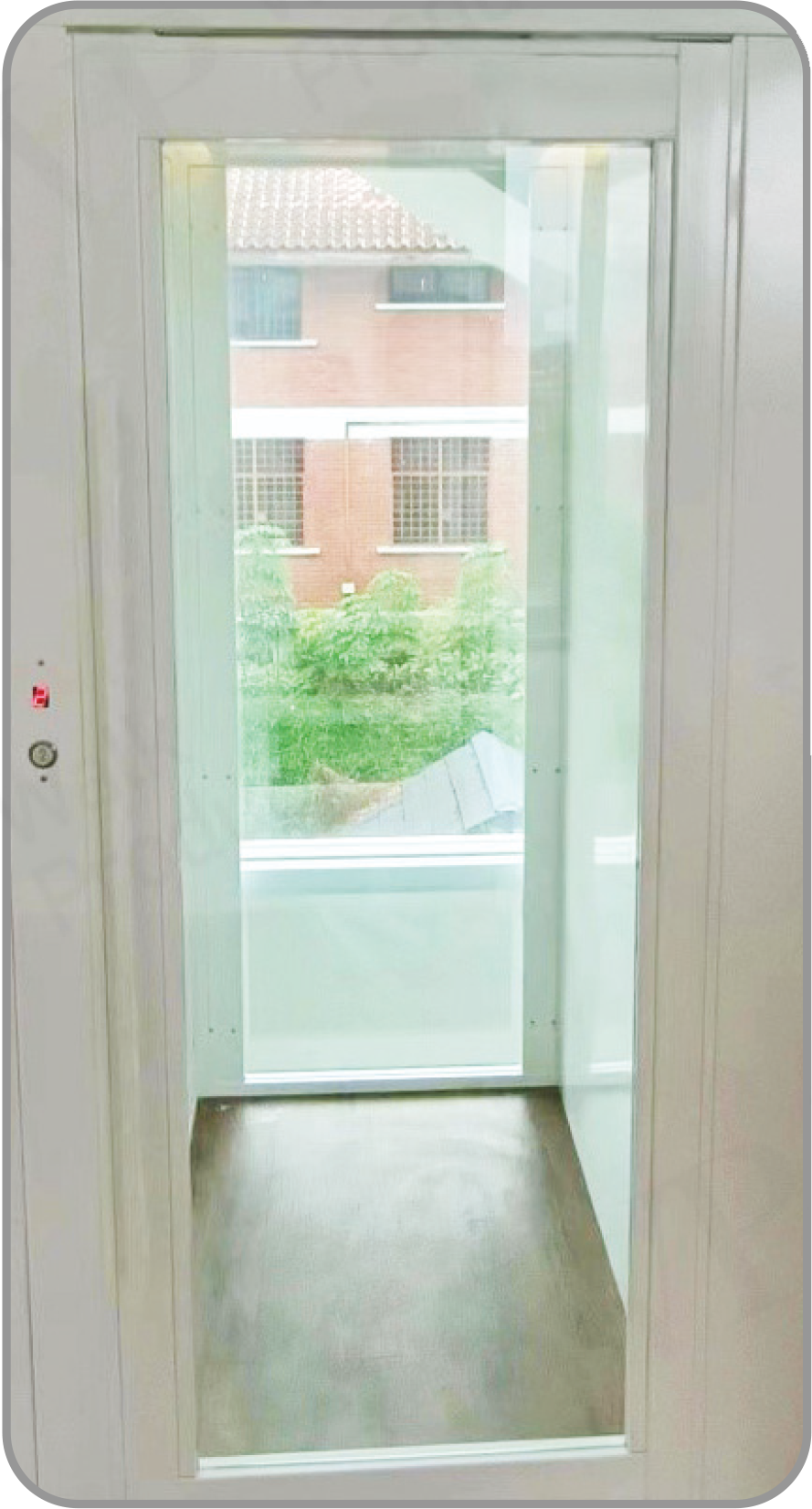

AUTOMATIC
The automatic landing door eliminates the need for manual operation. For automatic landing door type, passengers can open and close the door with a call button. The door's closing speed and time are set and cannot be adjusted.

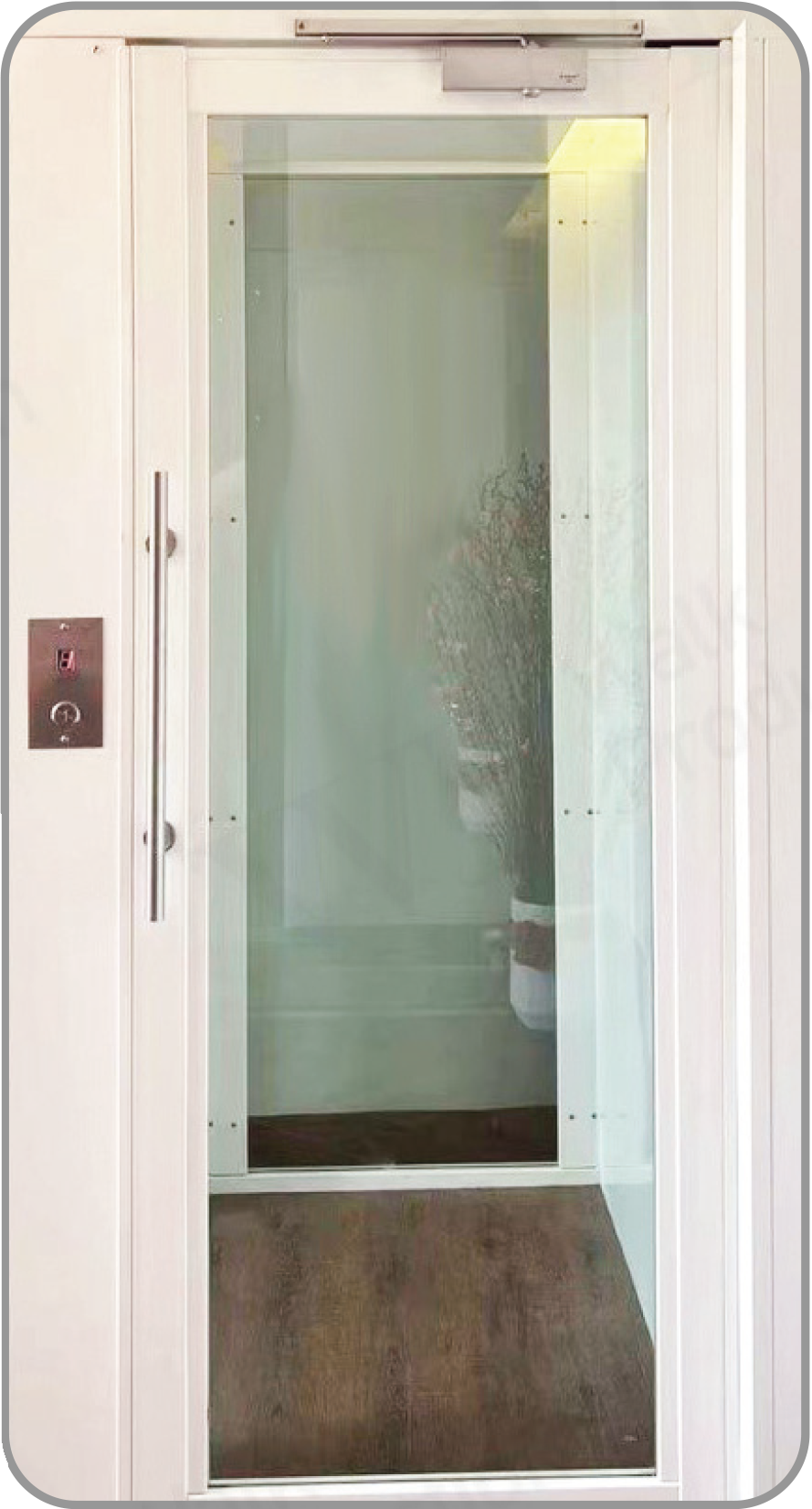

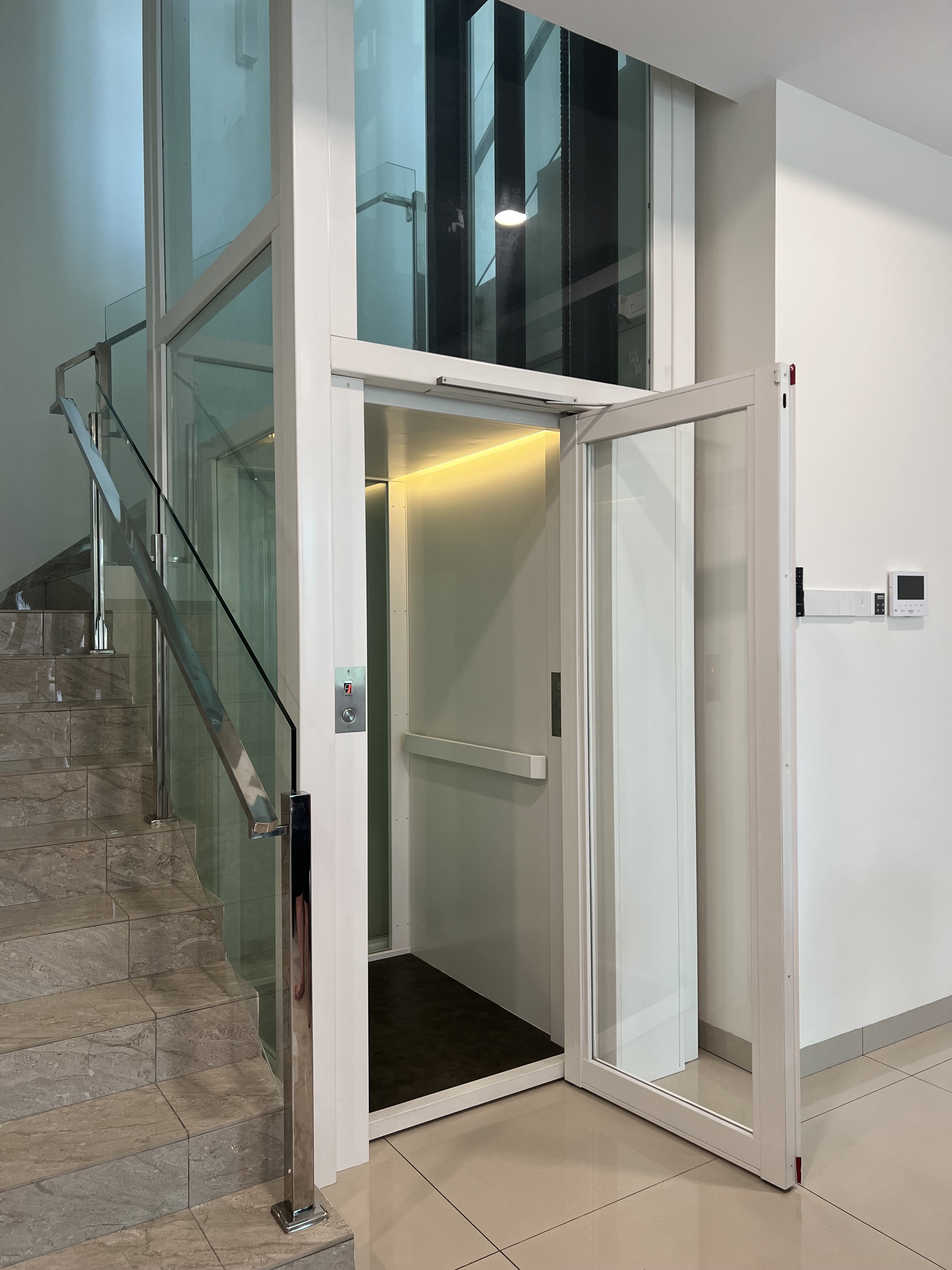

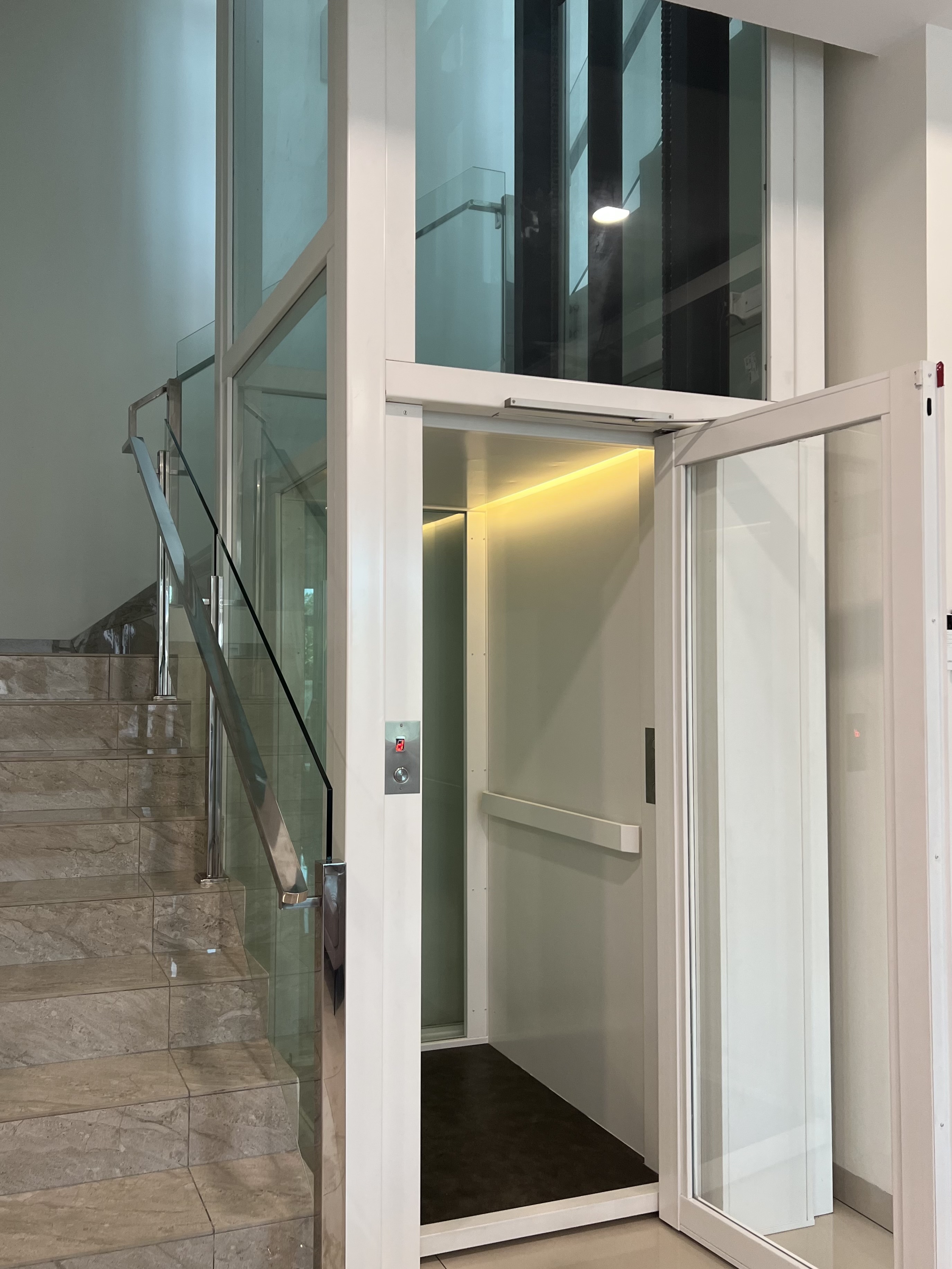

Semi-Automatic
The semi-automatic landing door opens manually and closes automatically. The door closing are powered by a door operator. Closing speed and time are set and cannot be adjusted.
Play Video

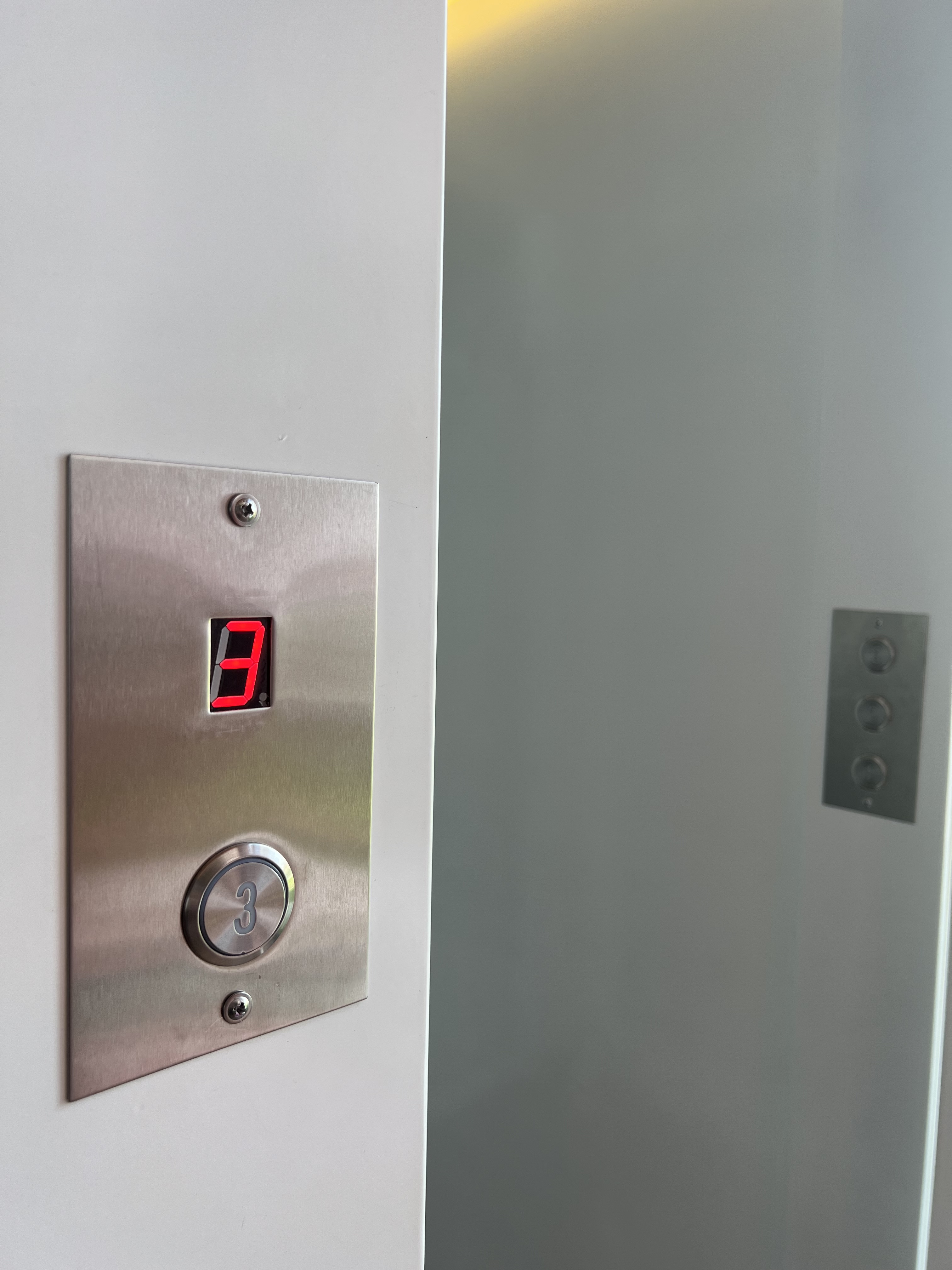

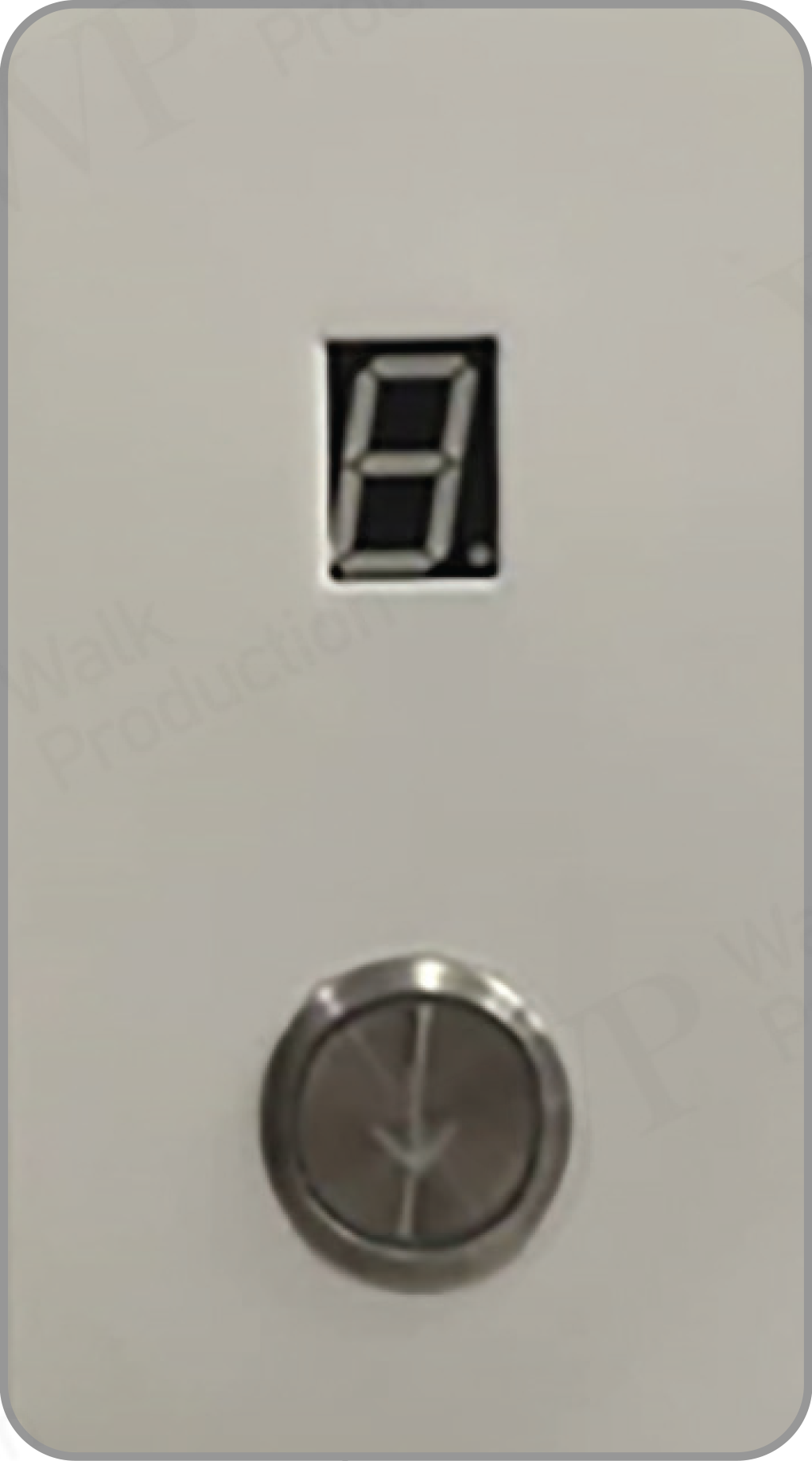

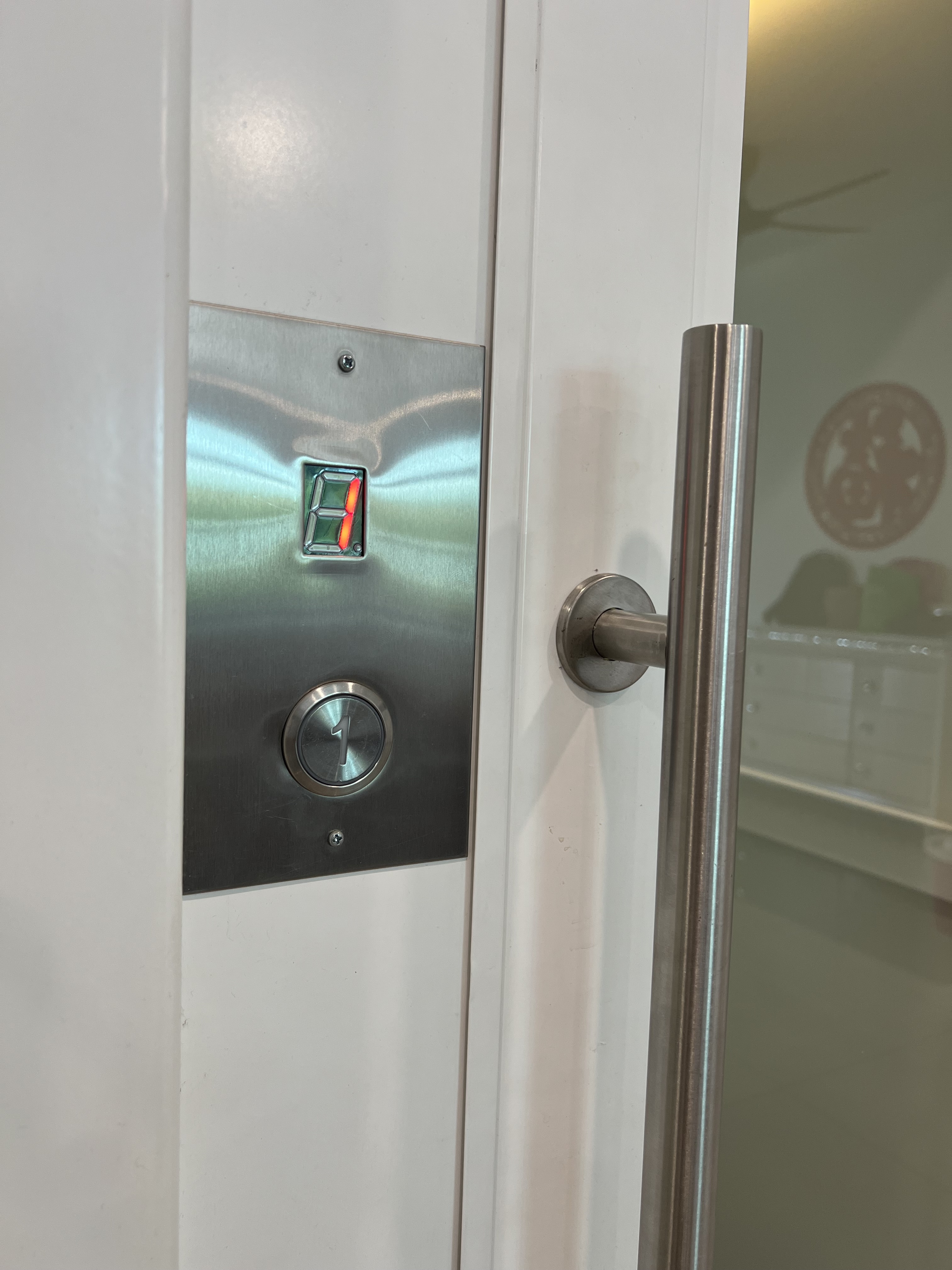

Hall Station
The buttons on the hall station illumanate when pressed, ensuring clear visibility and ease of use. Made from stainless steel, the wall plates and push buttons are built to withstand the test of time, providing maximum durability and ensuring longevity.

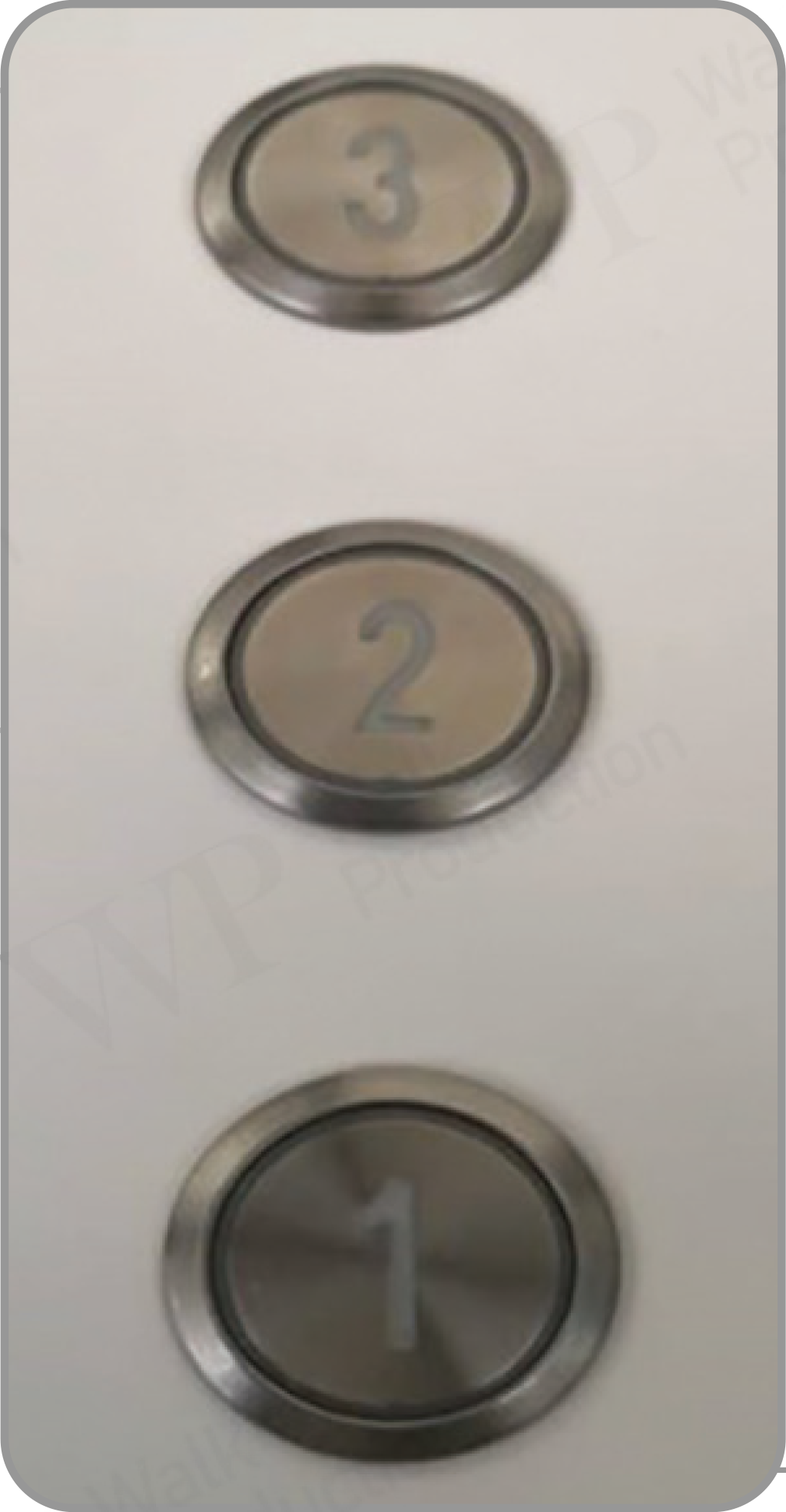

Operating Panels

Our car operating panels are equipped with advanced features to enhance your elevator experience. A digital floor display provides clear and accurate information, allowing passengers to navigate between floors easily.
In case of emergencies, the panels are equipped with an emergency stop and alarm button, providing passengers with a quick and reliable means to halt the elevator and alert for assistance. Moreover, our lifts have an integral telephone to enable immediate communication with emergency services or building management.

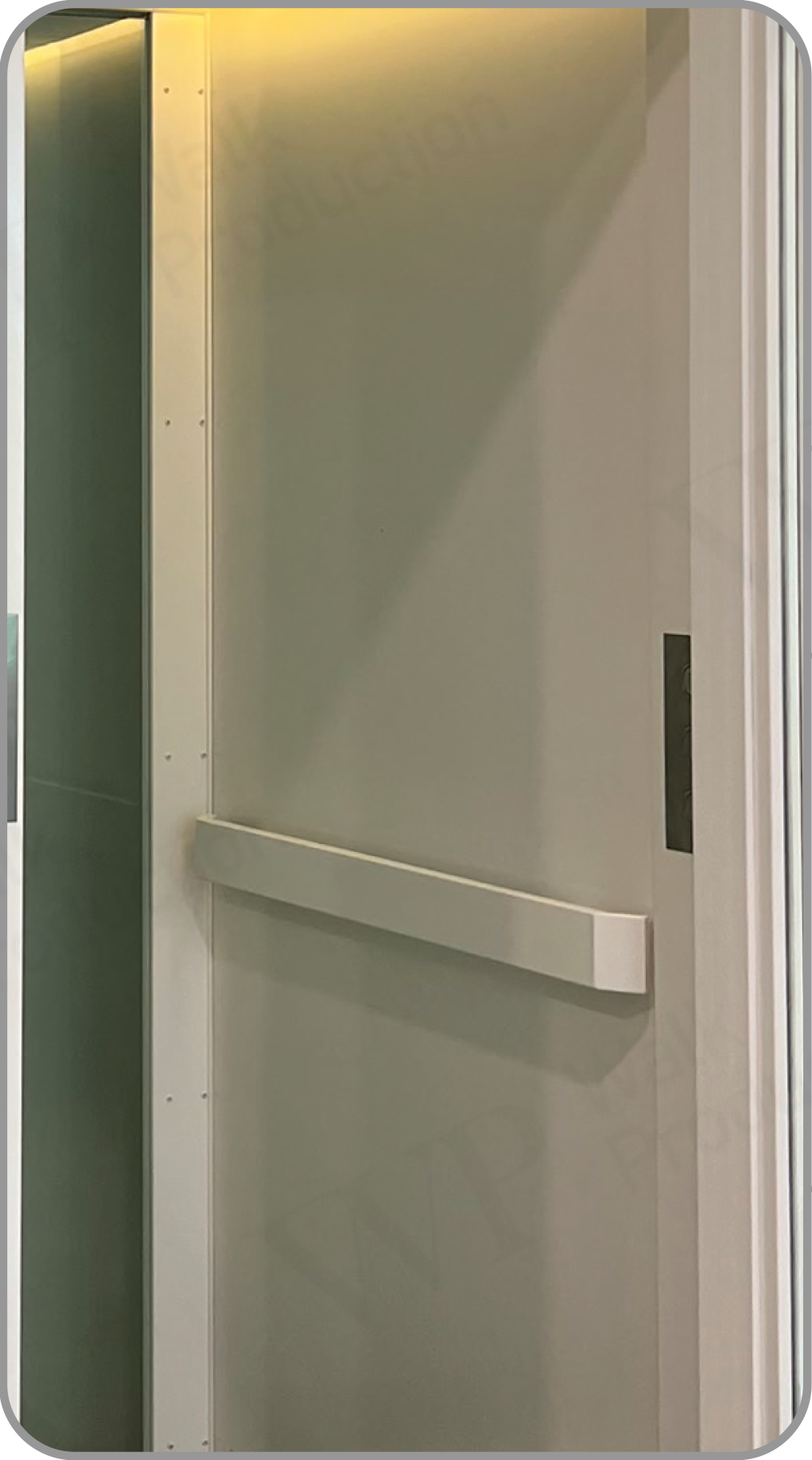

Handrails
Strategically located on the control wall, our handrails provide stability and support for passengers. We also offer the option to mount extra handrails for those seeking additional safety measures.

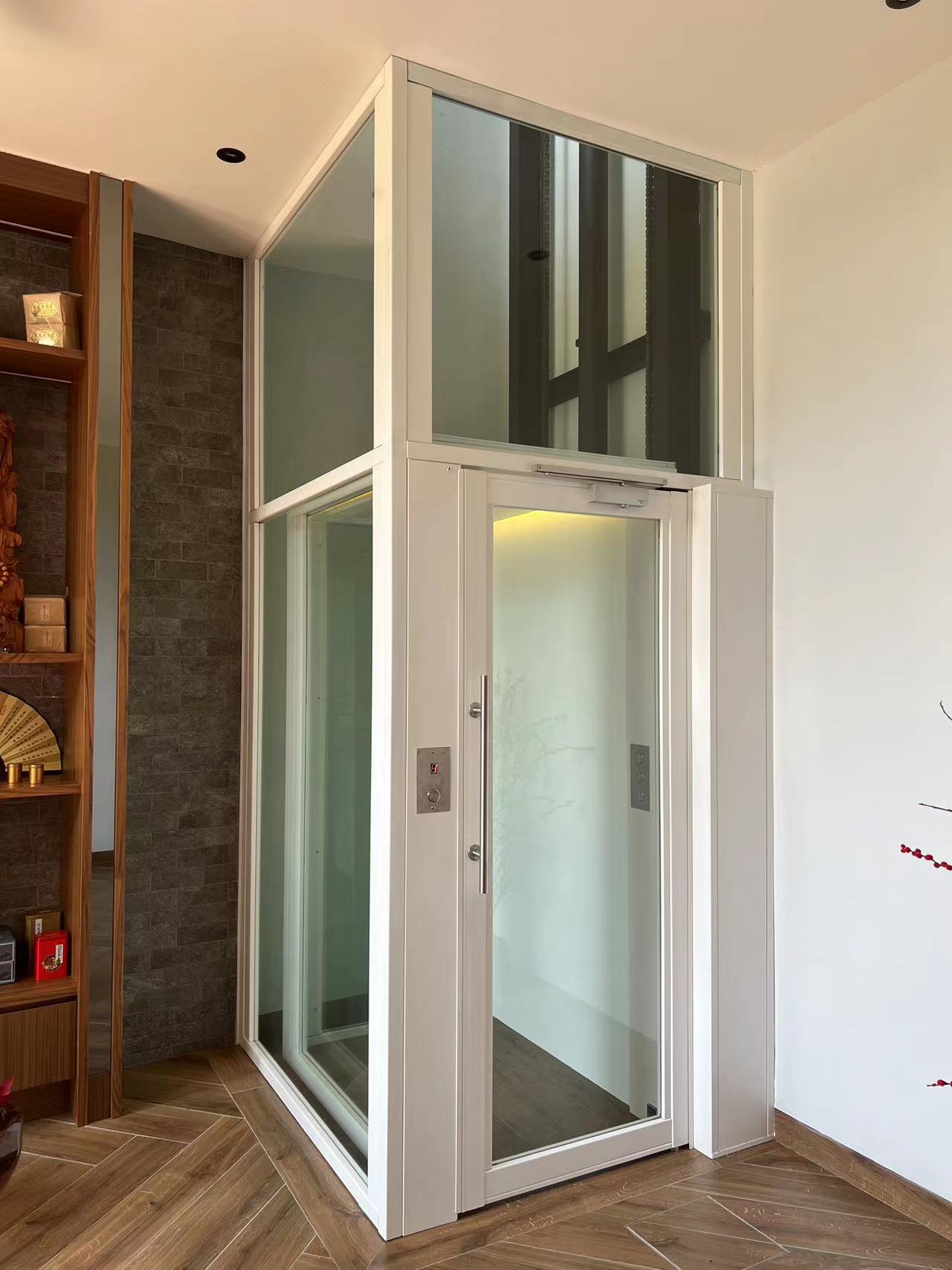

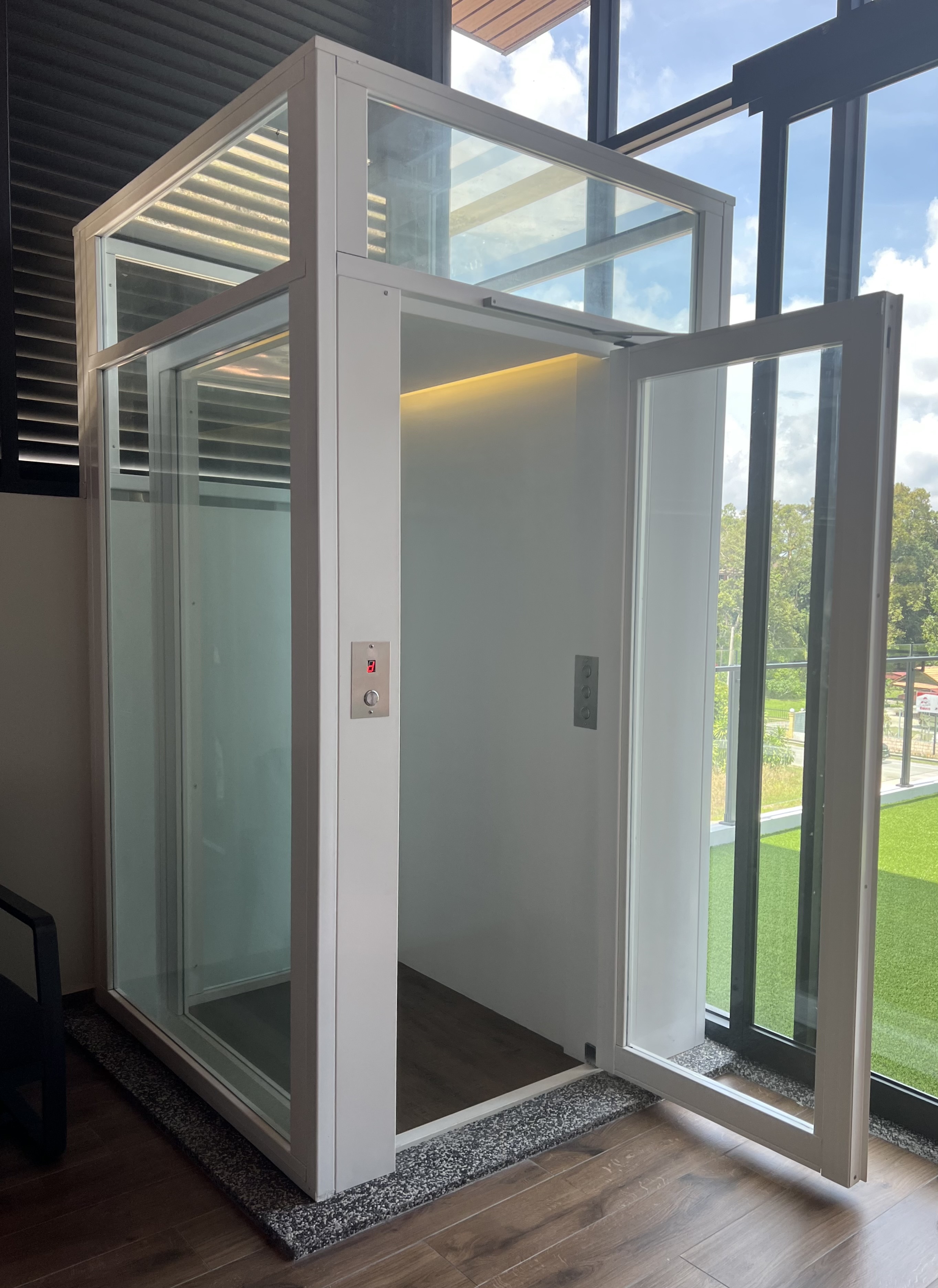

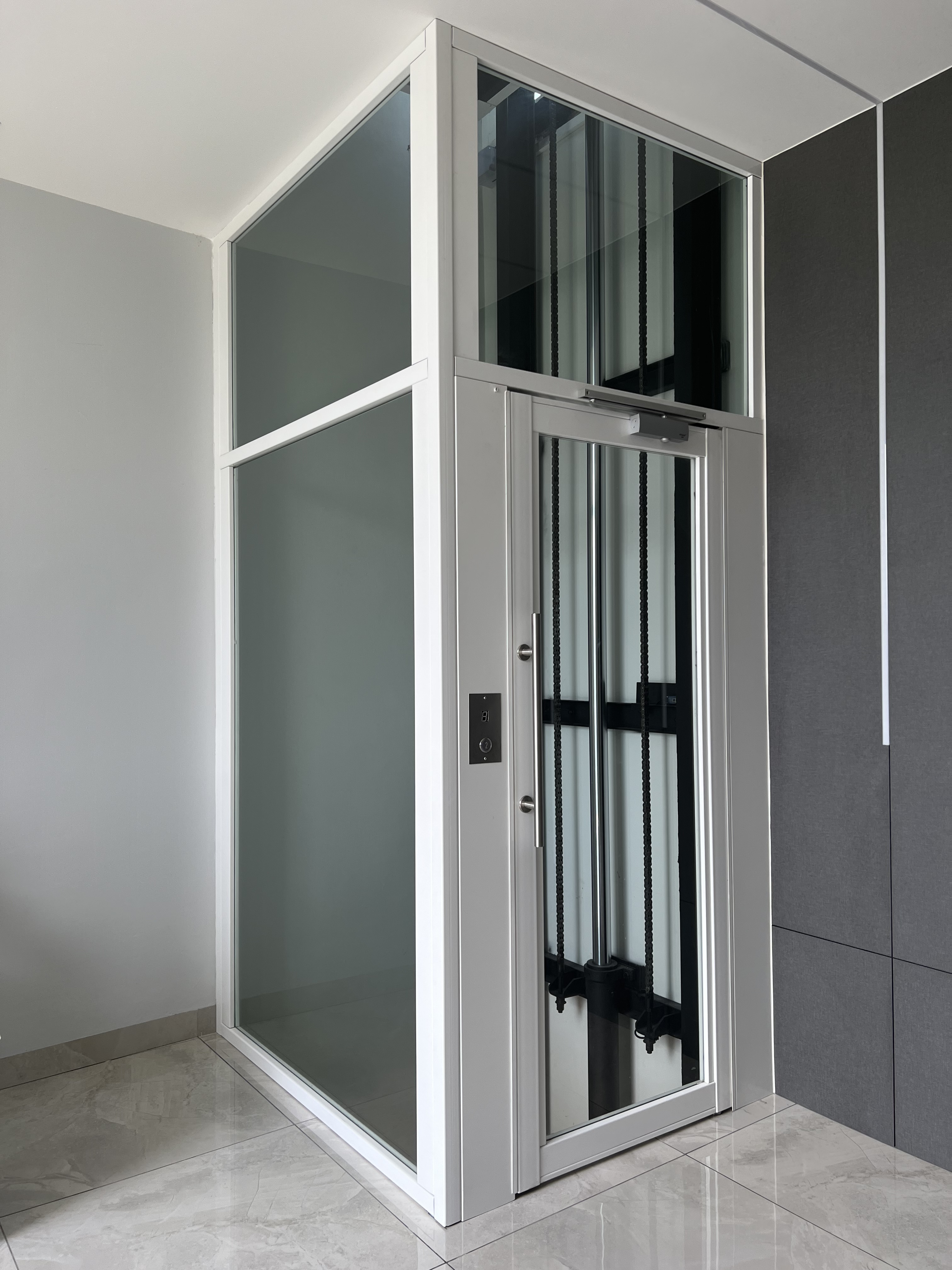

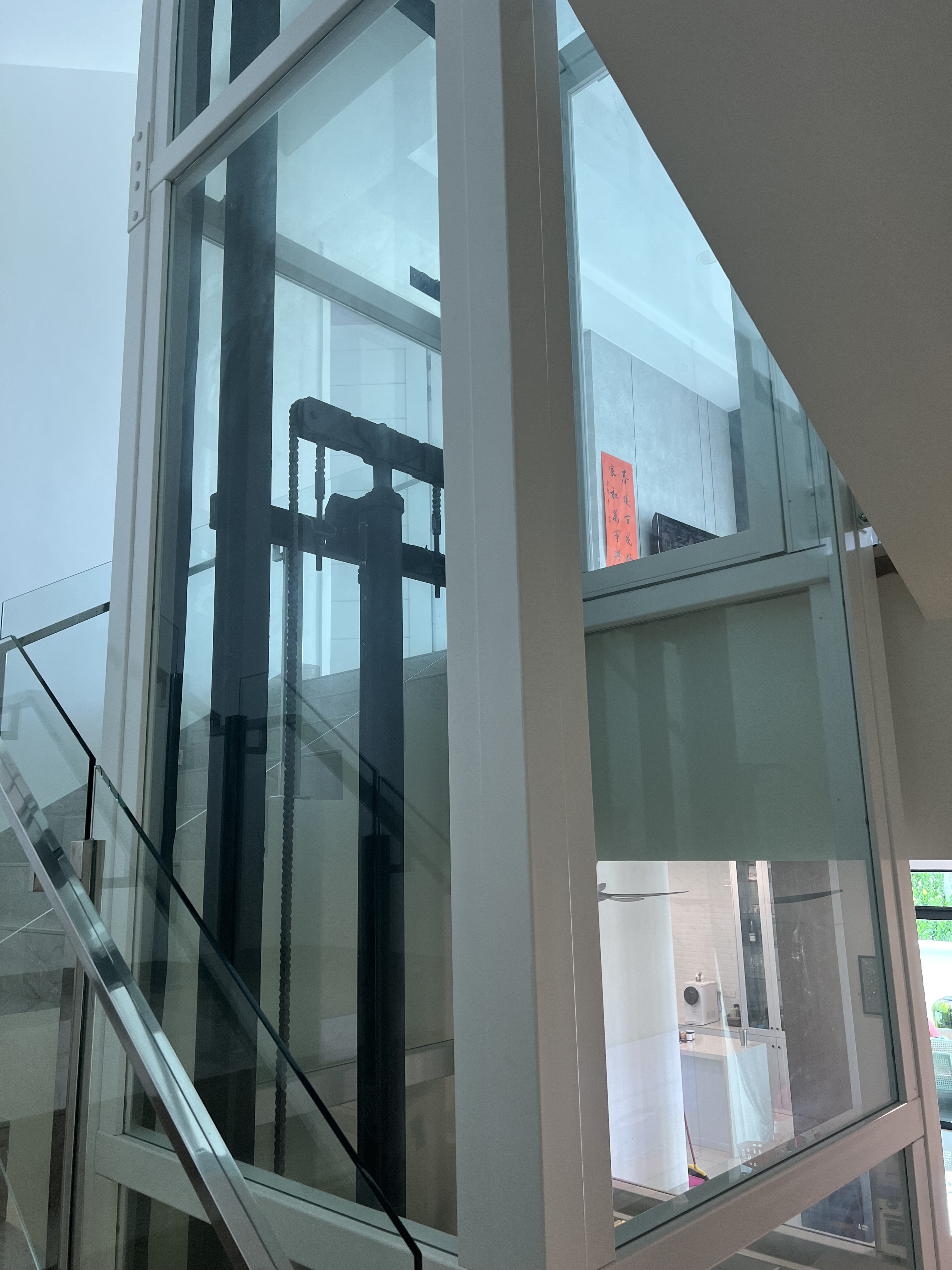

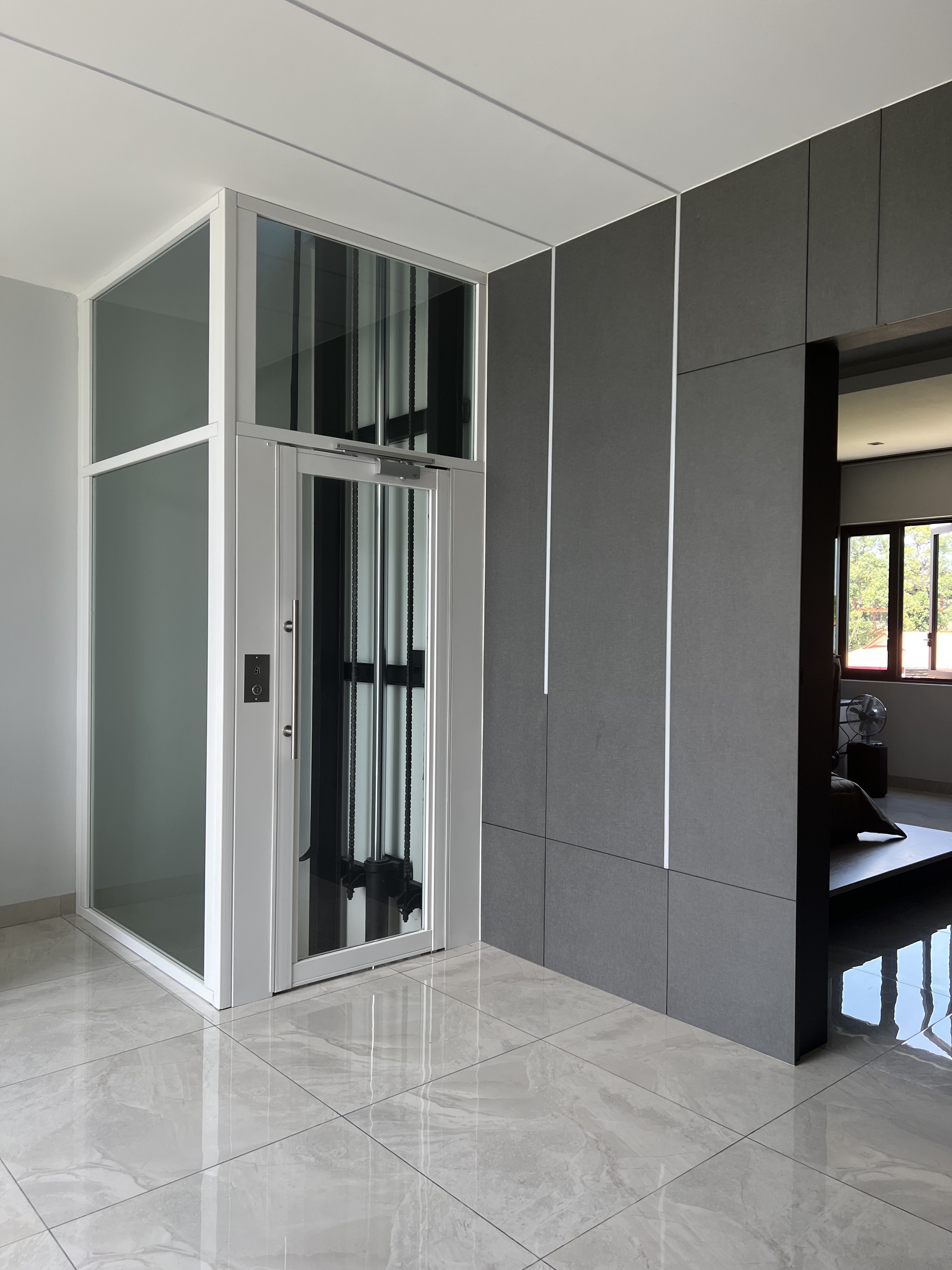

Lift With Tower
Lift Without Tower
TECHNICAL FEATURES SPECIFICATIONS

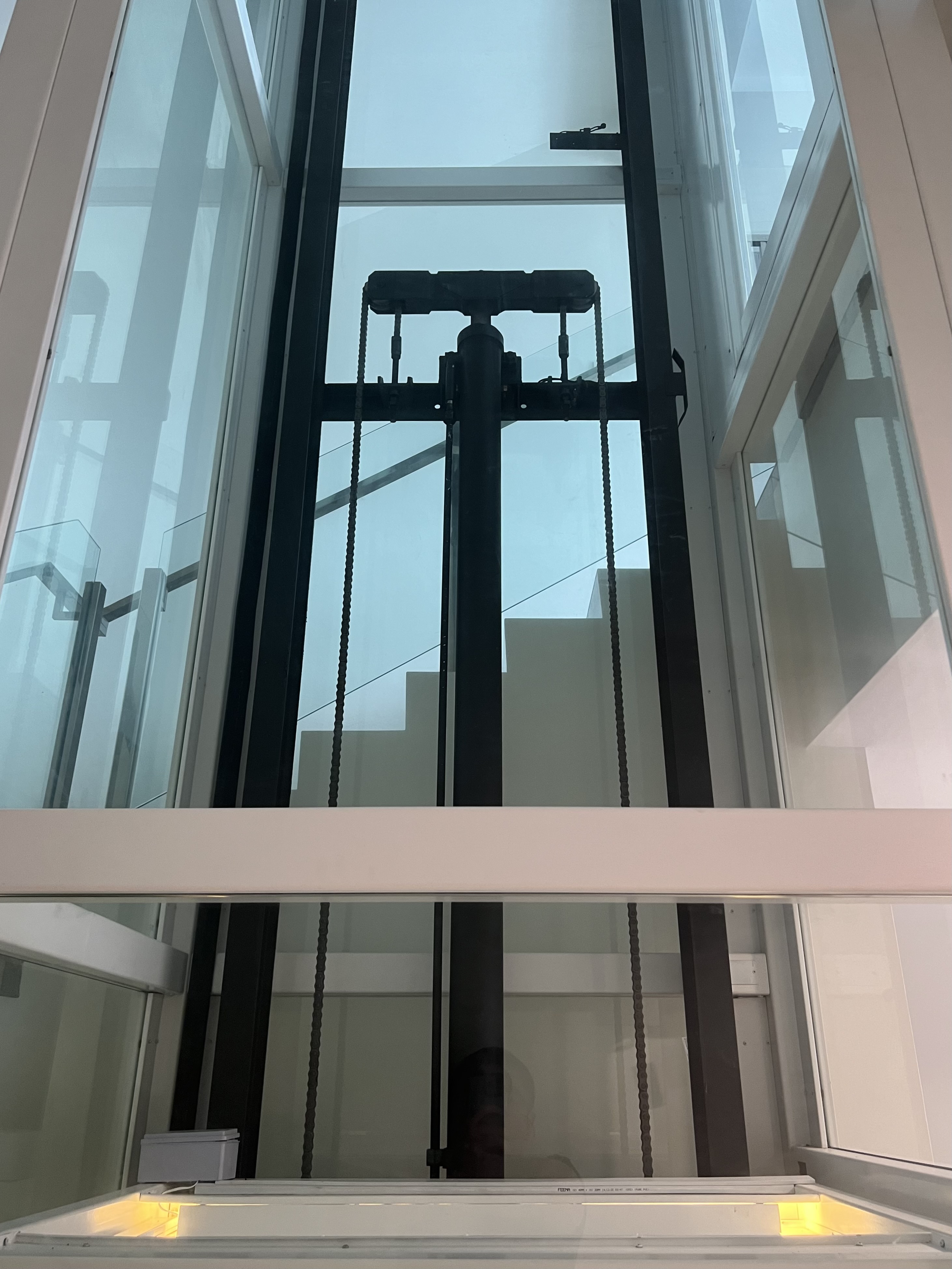

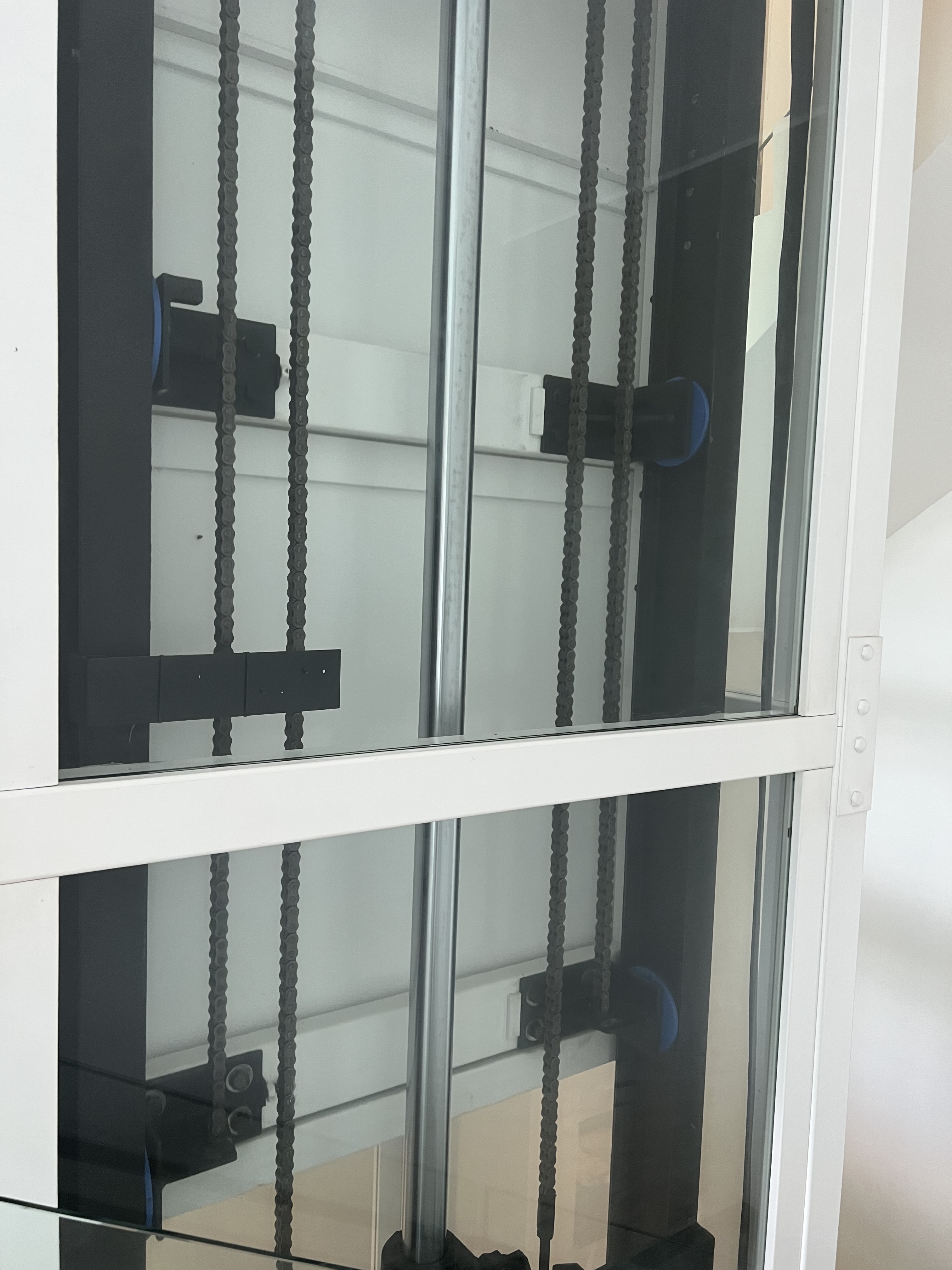

Drive Unit Type Hydraulic 1:2 chain drive
Operation Type Electronic variable-frequency drive, which minimises the lift's energy consumption, increases ride comfort and optimises car-to-landing stop accuracy.
Rated Speed 0.15/0.3 metres/second
Rated Load 280, 420kg
Entrance Configuration Single and Double
Maximun Travel 14 Meters
Power 1.5kW - 3.4kW (depend on travel speed)
Car Height 2,080mm
Maximun Pit Depth N/A
Minimun Headroom 3,350mm
Door Clearance Width 750mm
Control System
  • Fully automatic push-button operation
  • Digital floor indicator in the car
  • Voltage and frequency inverter
  • Automatic car lighting upon entry
Hydraulics
  • Low-pressure hydraulic system to increase reliability
  • Overload protection device integrated into the hydraulic system
  • Elevator valve and queit pump made in German
Standard Safety Features
  • Battery-powered emergency landing
  • Hydraulic-activated safety brake system
  • Emergency stop and alarm
Warranty 1 year standard warranty, optional 2 year warranty with additional cost
TECHNICAL FEATURES
& Specification
Drive Unit Type
Hydraulic 1:2 chain drive
Operation Type
Elecdivonic variable-frequency drive, which minimises dive lift's energy consumption, increases ride comfort and optimises car-to-landing stop accuracy.
Rated Speed
0.15/0.3 medives/second
Rated Load
280, 420kg
Endivance Configuration
Single and Double
Maximun Travel
14 Meters
Power
1.5kW - 3.4kW (depend on divavel speed)
Car Height
2,080mm
Maximun Pit Depdiv
N/A
Minimun Headroom
3,350mm
Door Clearance Widdiv
750mm
Condivol System
Hydraulics
Standard Safety Features
Warranty
1 year standard warranty, optional 2 year warranty widiv additional cost
